| | 1963 - 1967 |
| Row-Crop tractor |
|
Series map:
706
806
1206
89.0hp
110.0hp
125.1hp*
*Estimated engine power for comparison only.
| Engine options |
| International Harvester 5.9L 6-cyl diesel |
| International Harvester 4.9L 6-cyl gasoline |
| International Harvester 4.9L 6-cyl LP-gas |
| Engine Detail |
| International Harvester D-361 |
| diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 361 ci
5.9 L
|
| Bore/Stroke | 4.125x4.50 inches
105 x 114 mm
|
| Air cleaner | two-stage dry
|
| Compression | 17:1
|
| Rated RPM | 2400
|
| Idle RPM | 900-2400
|
| Starter volts | 12
|

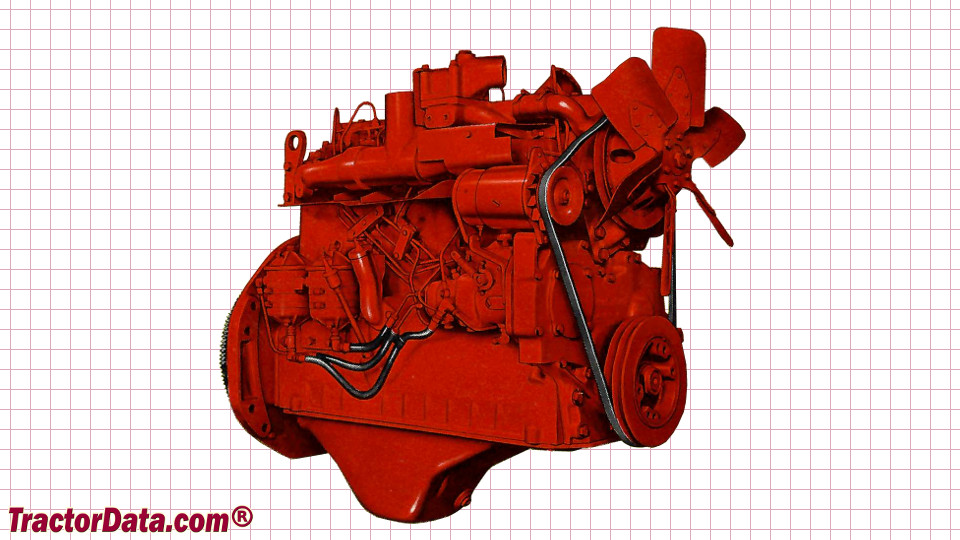

| Farmall 806 Engine |
 |
| Engine Detail |
| International Harvester C-301 |
| gasoline |
| 6-cylinder |
| liquid-cooled |
| Displacement | 301 ci
4.9 L
|
| Bore/Stroke | 3.8125x4.39 inches
97 x 112 mm
|
| Power (gross) | 110 hp
82.0 kW
|
| Air cleaner | two-stage dry
|
| Rated RPM | 2400
|
| Starter volts | 12
|
| Engine Detail |
| International Harvester C-301 |
| LP-gas |
| 6-cylinder |
| liquid-cooled |
| Displacement | 301 ci
4.9 L
|
| Bore/Stroke | 3.8125x4.39 inches
97 x 112 mm
|
| Air cleaner | two-stage dry
|
| Rated RPM | 2400
|
| Starter volts | 12
|
