Farmall 130 Tests


Farmall 130 tractor photo
1956 - 1958
Row-Crop tractor
Series map:
130
230
24.7hp*
27.7hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 617

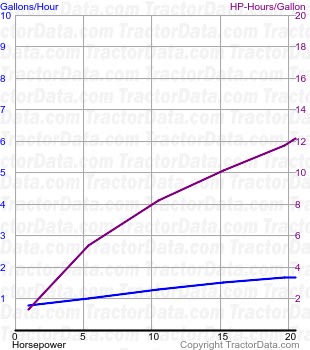

130 fuel use from test 617
Nebraska Tractor Test 617
Gasoline 4-speed 2WD
April 25 - May 7, 1957
Link: Nebraska Tractor Test 617 file
Belt power (max)22.23 hp
16.6 kW
Belt fuel use (max)1.8 gal/hour
6.8 l/hour
Drawbar performance
Max power19.91 hp
14.8 kW
Gear 2 used for power test.
Max pull2,956 lbs
1340 kg
Gear 1 used for pull test.
