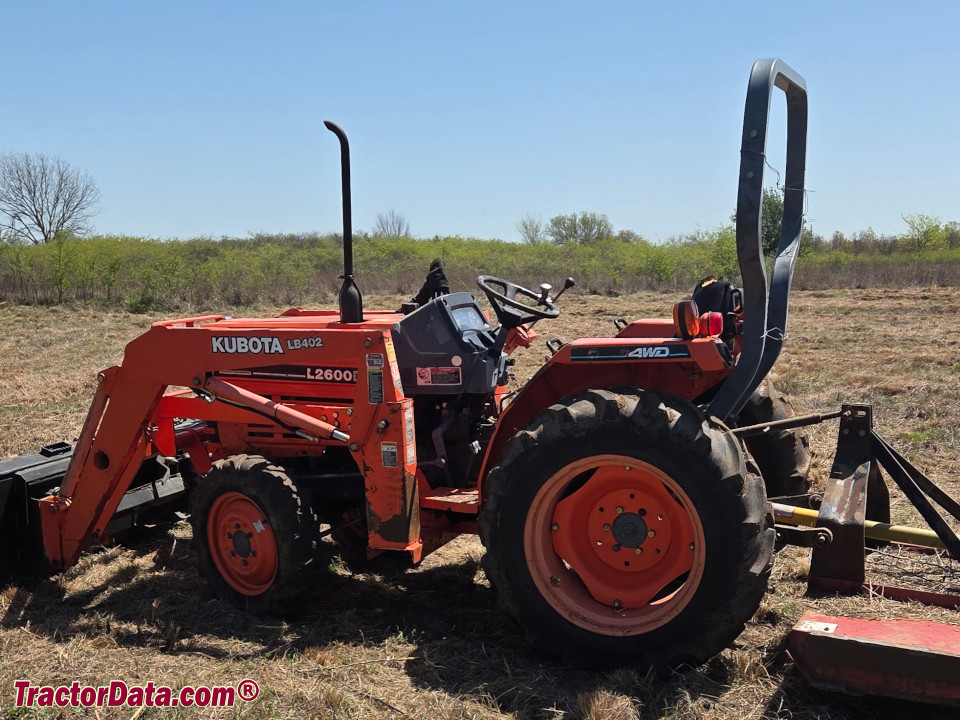

Kubota L2600
| | 2000 - 2003 |
| Standard L Series | | Compact Utility tractor |
|
Series map:
L2600
L3000
27.0hp
32.1hp
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Variants |
| L2600F | 2WD
|
| L2600DT | 4WD
|
| Kubota L2600 Power |
| Engine (gross) | 27 hp
20.1 kW
|
| PTO (claimed) | 22.5 hp
16.8 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| 2WD Steering | manual
|
| 4WD Steering | power
|
| Wet disc brakes |
| Two-post ROPS. |
| Photos |
| No photos of the Kubota L2600 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| 2WD Total flow | 4.6 gpm
17.4 lpm
|
| 4WD Total flow | 7.2 gpm
27.3 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position control
|
| Rear lift (at ends) | 1985 lbs
900 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Clutch | overrunning dry disc
|
| Rear PTO Type | 540 (1.375)
|
| Electrical |
| Ground | negative
|
| Battery CCA | 490
|
| Battery volts | 12
|
| References |
 |
| L2600/L3000 published in 2000, by Kubota |
| L2600/L3000/L4300 Basic Tractor Series published in 2002, by Kubota |
