| | 1994 - 1995 |
| 80 Series | | Four-wheel Drive (4WD) tractor | | Versatile built |
|
Series map:
9280
9480
9680
250.0hp
300.0hp
350.0hp
| Transmission options |
| 12-speed partially synchronized |
| 12-speed full power shift |
| Transmission |
| Transmission | Quadra-Sync
|
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| Oil capacity | 50.7 qts
48.0 L
|
| Four synchronized gears in three ranges, plus reverse range. |

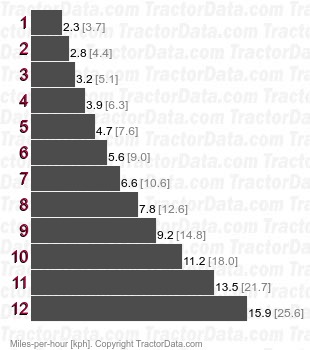

| Speeds |
|
| Transmission |
| Transmission | Twin Disc
|
| Type | full power shift
|
| Gears | 12 forward and 2 reverse
|
| Oil capacity | 50 qts
47.3 L
|

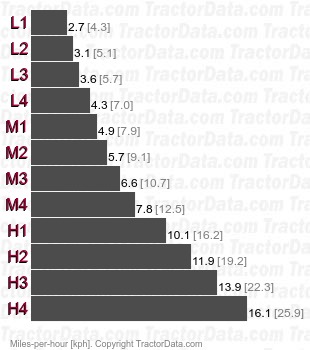

| Speeds |
|
