Tractors > John Deere > 5400N

John Deere 5400N



John Deere 5400N tractor photo
1995 - 1997
5000 Utility Series
Orchard/Vineyard tractor
Series map:
5400N
5500N
68.4hp
83.2hp
Production
ManufacturerJohn Deere
Orchard/Vineyard tractor
Built in Augusta, Georgia, USA
Variants
5400utility tractor
John Deere 5400N Engine
John Deere 2.9L 3-cyl diesel
Fuel tank16 gal
60.6 L
Engine details ...
John Deere 5400N Transmission
12-speed partially synchronized
Transmission details ...
John Deere 5400N Power
Engine (gross)68.4 hp
51.0 kW
PTO (claimed)60 hp
44.7 kW
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD (optional)
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post folding ROPS.
Photos
No photos of the John Deere 5400N are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure2750 psi
189.6 bar
Pump flow11.4 gpm
43.1 lpm
Total flow18.2 gpm
68.9 lpm
Steering flow6.8 gpm
25.7 lpm
Tractor hitch
Rear Type2/1/1N
Rear lift3,374 lbs
1530 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/540E
Dimensions & Tires
Wheelbase76.6 inches
194 cm
Weight4763 to 5072 pounds
Front tire6.50-16
Rear tire12.4-24 (2WD)
Full dimensions and tires ...
John Deere 5400N attachments
front-end loader
Attachment details ...
5400N Serial Numbers
1995460116
1996560001
1997660000

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References

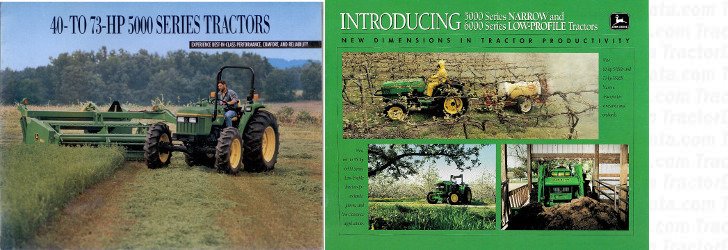

5400N references literature
40- to 73-HP 5000 Series Tractors published in 1995, by John Deere
5000 Series NARROW and 6000 Series LOW-PROFILE Tractors published in 1994, by John Deere
