John Deere AR Styled Tests



John Deere AR Styled tractor photo
1935 - 1953
Model year
Standard-tread tractor
Series map:
AR
43.4hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 429

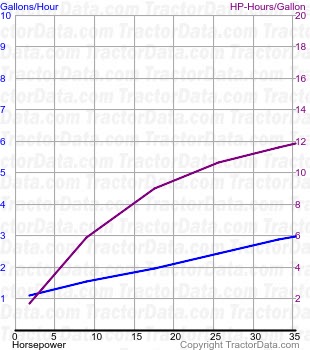

AR Styled fuel use from test 429
Nebraska Tractor Test 429
Gasoline 6-speed 2WD
October 11 - 15, 1949
Link: Nebraska Tractor Test 429 file
Belt power (max)37.87 hp
28.2 kW
Belt fuel use (max)3.5 gal/hour
13.2 l/hour
Drawbar performance
Max power34.03 hp
25.4 kW
Gear 4 used for power test.
Max pull4,372 lbs
1983 kg
Gear 1 used for pull test.
