| | 1987 - 2000 |
| 80 Series | | Utility tractor |
|
Series map:
7880
8880
9880
52.9kw
59.7kw
69.4kw
| Transmission options |
| 12-speed synchromesh |
| 12-speed shuttle |
| 24-speed synchromesh |
| 24-speed creeper |

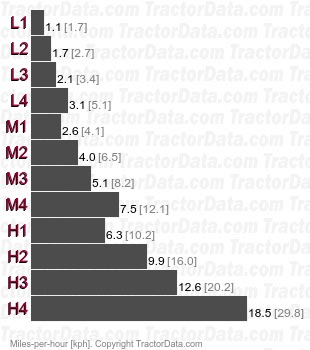

| Transmission |
| Type | synchromesh
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Four gears in three ranges. |
| Speeds |
|
| Transmission |
| Type | shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | dry disc
|
| Four gears in three ranges with shuttle. |
| Speeds |
| With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward. |
|
| Transmission |
| Type | synchromesh
|
| Gears | 24 forward and 12 reverse
|
| The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%. |

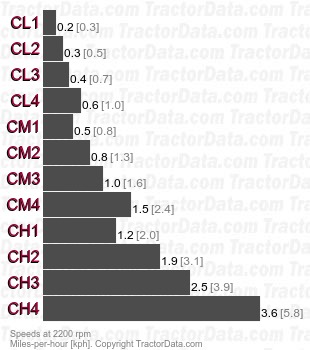

| Transmission |
| Type | creeper
|
| Gears | 24 forward and 12 reverse
|
| Speeds |
| With 16.9/14-34 rear tires. |
|
