Ford TW-5 Transmission


Ford TW-5 tractor photo
1983 - 1986
TW Series
Row-Crop tractor
Series map:
TW-5
TW-15
122.0hp
137.0hp
Transmission
TransmissionDual Power
Typepartial power shift
Gears16 forward and 4 reverse
Clutch330mm dry disc
Oil capacity92 qts
87.1 L
Electrically-actuated Dual Power allows shift-on-the-move from Direct mode to lower Power Mode for each gear.

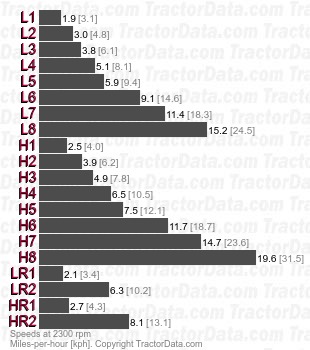

Speeds
With 18.4x38 rear tires.
TW-5 Dual Power partial power shift speeds
