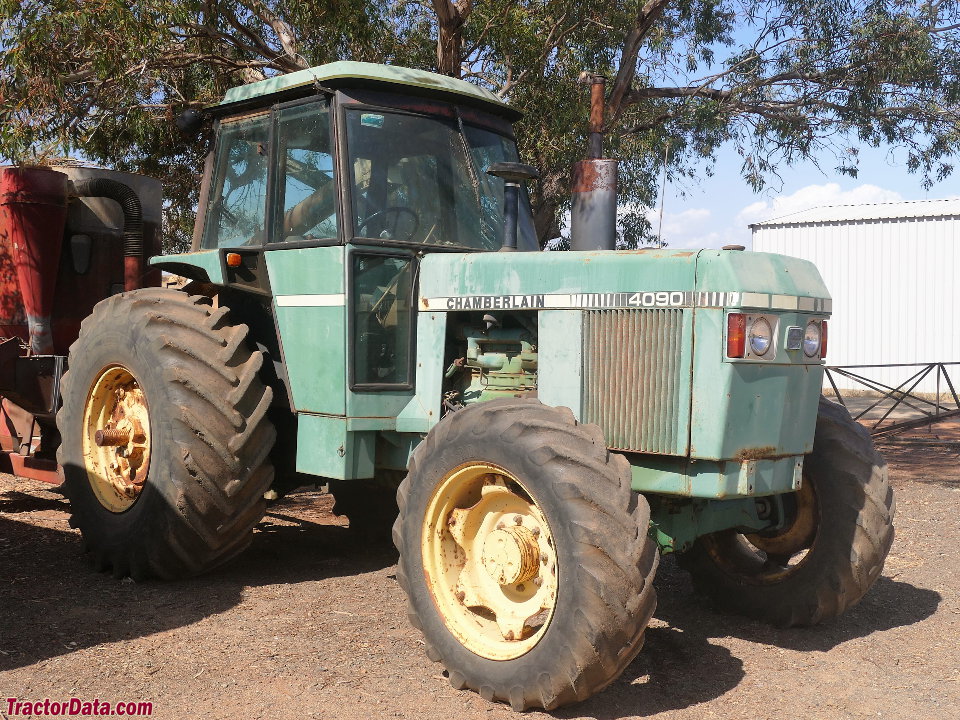

Chamberlain 4090
| | 1985 - 1986 |
| 90 Series | | Row-Crop tractor |
|
Series map:
4090
4290
74.9kw
88.0kw
| Production |
| Manufacturer | Chamberlain (a part of John Deere)
|
| Row-Crop tractor |
| Built in Welshpool, Australia |
| Total built | 510
|
| Chamberlain 4090 Power |
| Engine (net) | 100.5 hp
74.9 kW
|
| PTO (claimed) | 94 hp
70.1 kW
|
| Mechanical |
| Drive | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Steering | hydrostatic power
|
| Hydraulic wet disc brakes |
| Cab standard with air-conditioning. |
| Capacity |
| Fuel | 57.3 gal
216.9 L
|
| Hydraulic system | 7.2 gal
27.3 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 7.2 gal
27.3 L
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 4 (max)
|
| | 3 (with 3pt)
|
| Total flow | 15.6 gpm
59.0 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | top-link sensing
|
| Rear lift (at 24"/610mm) | 5,355 lbs
2429 kg
|
| | 6,517 lbs (optional)
2956 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic disc
|
| Rear PTO Type | 540
|
| | 1000 (optional)
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 55
|
| Batteries | 2
|
| Battery volts | 6
|
| References |
 |
| John Deere Tractors Worldwide by Don Macmillan |
| 90 Series Tractors published in 1985, by Chamberlain |
