Tractors > Cub Cadet > 7272

Cub Cadet 7272 Engine



Cub Cadet 7272 tractor photo
1996 - 1997
7000 Series
Compact Utility tractor
Mitsubishi built
Series map:
7235
7272
7273
23.0hp
27.0hp
27.0hp
Engine Detail
Mitsubishi K3M
diesel
3-cylinder
liquid-cooled overhead valve (OHV)
Displacement91.3 ci
1.5 L
Bore/Stroke3.307x3.543 inches
84 x 90 mm
Power27 hp
20.1 kW
Fuel systemdirect injection
Air cleanerdry
Compression18:1
Rated RPM2500
Idle RPM970-2750
Firing order1-3-2
Starter volts12
Coolant capacity6.7 qts
6.3 L
Coolant change1000 h
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.010 inches*Cold
0.254 mm
Engine Oil

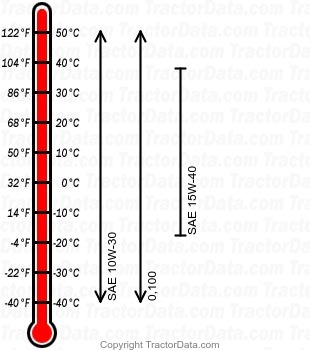

7272 diesel engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
