Cub Cadet 7300 Engine


Cub Cadet 7300 tractor photo
1998 - 2003
7000 Series
Compact Utility tractor
Series map:
7265
7300
7305
26.0hp
30.0hp
30.0hp
Engine Detail
Mitsubishi
diesel
3-cylinder
liquid-cooled
Displacement91.29 ci
1.5 L
Bore/Stroke3.307x3.543 inches
84 x 90 mm
Power (net)27 hp
20.1 kW
Power (gross)30 hp
22.4 kW
Fuel systemdirect injection
Air cleanerdry
Pre-heatingglow plugs
Compression18:1
Rated RPM2750
Idle RPM970-2980
Firing order1-3-2
Starter volts12
Starter power2.15 hp
1.6 kW
Coolant capacity6.7 qts
6.3 L
Intake valve clearance0.010 inches*Cold
0.254 mm
Exhaust valve clearance0.010 inches*Cold
0.254 mm
Engine Oil

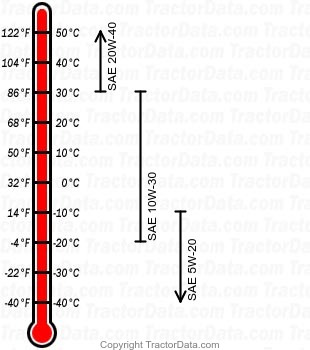

7300 diesel engine oil chart
Oil capacity5 qts
4.7 L
Oil change100 h
