Tractors > Cub Cadet > 7205

Cub Cadet 7205 Engine



Cub Cadet 7205 tractor photo
1998 - 2003
7000 Series
Sub-Compact Utility tractor
Series map:
7200
7205
20.0hp
20.0hp
Engine Detail
Mitsubishi
diesel
3-cylinder
liquid-cooled inline
Displacement68.6 ci
1.1 L
Bore/Stroke3.07x3.09 inches
78 x 78 mm
Power20 hp
14.9 kW
Fuel systemindirect injection
Air cleanerdry
Rated RPM2500
Idle RPM950-2680
Firing order1-3-2
Starter volts12
Coolant capacity6 qts
5.7 L
Intake valve clearance0.010 inches (cold)
0.254 mm
Exhaust valve clearance0.010 inches (cold)
0.254 mm
Engine Oil

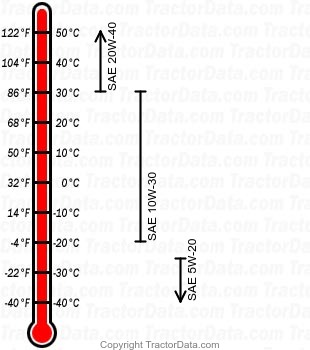

7205 diesel engine oil chart
Oil capacity4.4 qts
4.2 L
Oil change100 h
