Tractors > Cub Cadet > 7200

Cub Cadet 7200

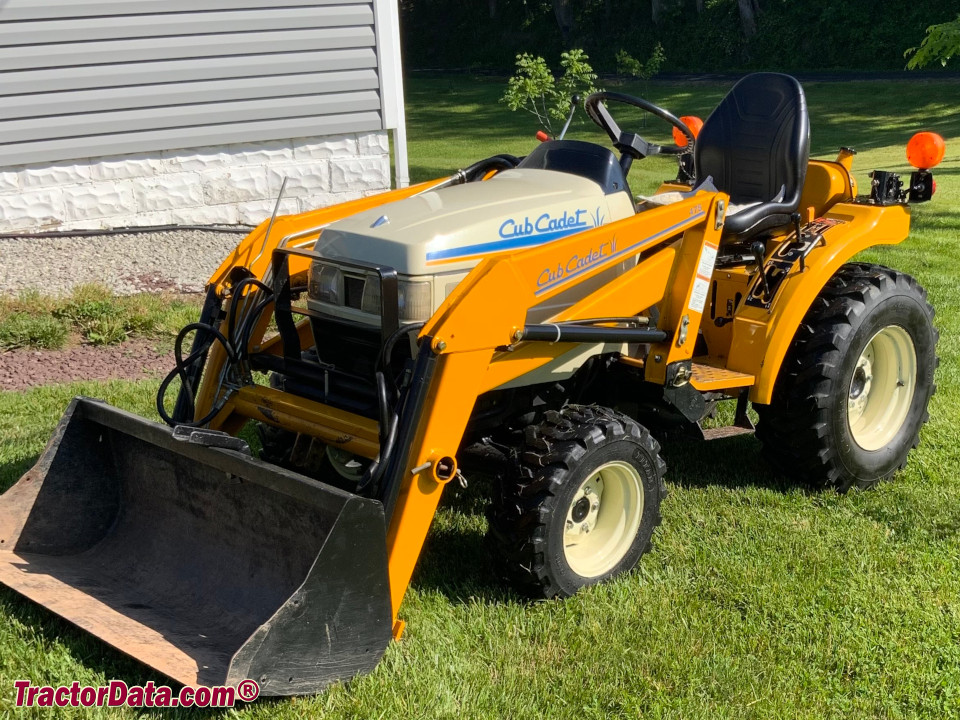

Cub Cadet 7200 tractor photo
1998 - 2003
7000 Series
Sub-Compact Utility tractor
Series map:
7000
7200
7205
20.0hp
20.0hp
20.0hp
Production
ManufacturerCub Cadet
Sub-Compact Utility tractor
Original price was $12,600 in 2003
Variants
70002WD gear
72004WD gear
72054WD hydro
Cub Cadet 7200 Engine
Mitsubishi 1.1L 3-cyl diesel
Fuel tank5.3 gal
20.1 L
Engine details ...
Cub Cadet 7200 Transmission
6-speed partially synchronized
Transmission details ...
Cub Cadet 7200 Power
Engine20 hp
14.9 kW
PTO (claimed)17.5 hp
13.0 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Mechanical dry shoe brakes
Two-post folding ROPS.
Photos
No photos of the Cub Cadet 7200 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure2133 psi
147.1 bar
Pump flow5.8 gpm
22.0 lpm
Total flow9.2 gpm
34.8 lpm
Steering flow3.4 gpm
12.9 lpm
Tractor hitch
Rear TypeI
Controlposition control
Rear lift (at ends)1400 lbs
635 kg
Rear lift (at 24"/610mm)980 lbs
444 kg
Power Take-off (PTO)
Rear PTOlive
Rear PTO Type540 (1.375)
Engine RPM540@2356
Mid PTOlive OptOptional
Mid PTO Type2000 (1.0)
Engine RPM2000@2470
Dimensions & Tires
Wheelbase57.9 inches
147 cm
Weight1964 lbs
890 kg
Front tire6x12
Rear tire9.5x16
Full dimensions and tires ...
Cub Cadet 7200 attachments
60" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
7200 references literature
Series 7000 Tractors published in 1998, by Cub Cadet
Series 7000 Compact Tractors published in 1999, by Cub Cadet
Series 7000 Tractors published in 2001, by Cub Cadet
Owner's Manual Series 7000 Compact Tractor (770-0910A)
Service Manual Compact Tractors (772-4207) published in 1995
