Tractors > Cub Cadet > 7200

Cub Cadet 7200 Attachments



Cub Cadet 7200 tractor photo
1998 - 2003
7000 Series
Sub-Compact Utility tractor
Series map:
7000
7200
7205
20.0hp
20.0hp
20.0hp
Attachment overview
60" mid-mount mower deck
Front-end loader
Backhoe
60" Mower deck
Typemid-mount Cub Cadet
 3-blade
Cutting width60 inches
152 cm

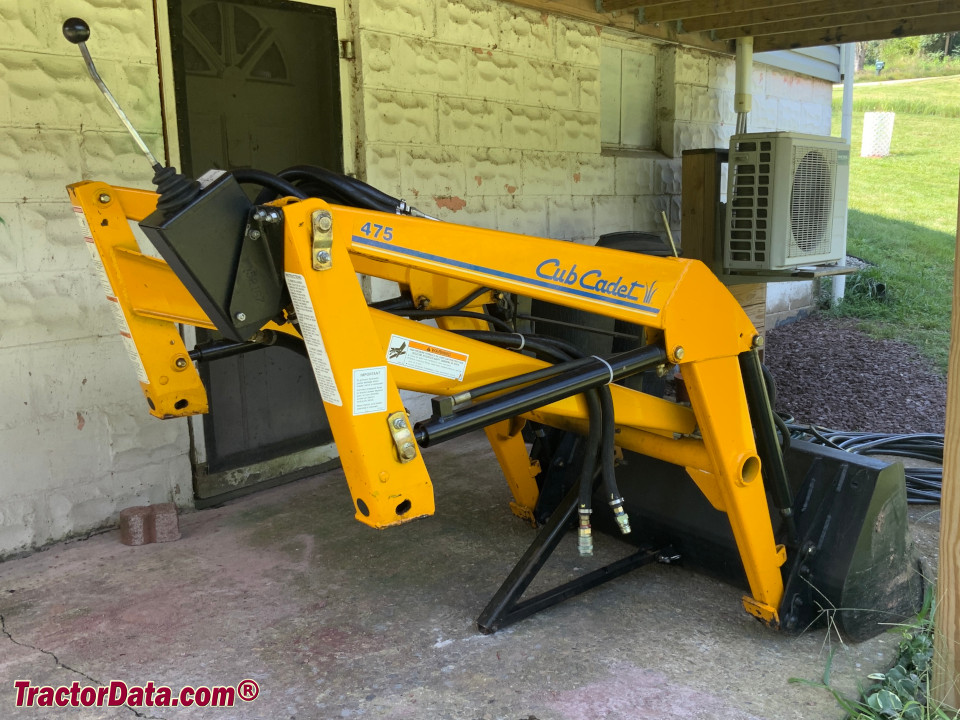

475 Loader
630 lbs lift (full at pin)
285 kg
950 lbs breakout
430 kg
45° dump
23 inches reach (dumped)
58 cm
54 inches reach (ground)
137 cm
22° rollback
84 inches height (at pin)
213 cm
63 inches clearance (dumped)
160 cm
boom cyl: 1.5 inches
3 cm
bucket cyl: 1.5 inches
3 cm
Bucket width: 48 inches
121 cm
Cub Cadet 457 Backhoe
Backhoe typeCub Cadet 457 Backhoe
Weight950 lbs
430 kg
Transport height66.8 inches
169 cm
Bucket width8 inches
20 cm
 12 inches
30 cm
 16 inches
40 cm
 18 inches
45 cm
 24 inches
60 cm
Digging depth78 inches
198 cm
Reach from pivot94 inches
238 cm
Loading height52.5 inches
133 cm
Bucket Rotation180°
Swing Arc180°
Bucket force2600 lbs
1179 kg
Dipperstick force1240 lbs
562 kg
