John Deere 3120 Transmission


John Deere 3120 tractor photo
1969 - 1972
Row-Crop tractor
Transmission
Typetwos-peed power shift
Gears12 forward and 6 reverse
Clutchdry disc
Three synchronized gears in two ranges, plus reverse range, with two-speed high-low shift. Tractor must be stopped, and clutch used, to shift range.

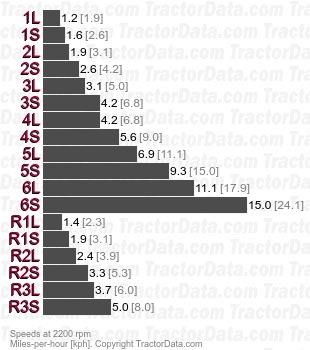

Speeds
With 16.9/14-34 rear tires.
3120  twos-peed power shift speeds

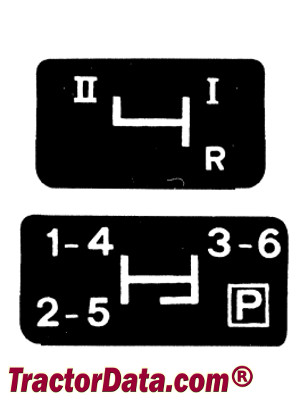

Shift Pattern
John Deere 3120 transmission controls
