John Deere 4020 Hi-Crop Transmission


John Deere 4020 Hi-Crop tractor photo
1963 - 1972
New Generation Series
High-Clearance tractor
Series map:
4020 Hi-Crop
104.4hp*
*Estimated engine power for comparison only.
Transmission options
8-speed partially synchronized
8-speed full power shift
Transmission
TransmissionSyncro-Range
Typepartially synchronized
Gears8 forward and 2 reverse
Oil capacity52 qts
49.2 L
Oil type
303 Special
Synchro-Range requires the tractor to be stopped and clutch depressed to select one of four shift stations. Once a station is selected the tractor can be shifted on the move between the two forward gears (and single reverse in stations 1 and 2) by using the clutch.
Speeds
Tractor speeds with 18.4-34 rear tires.
4020 Hi-Crop Syncro-Range partially synchronized speeds
Transmission
TransmissionPower Shift
Typefull power shift
Gears8 forward and 4 reverse
Oil capacity68 qts
64.4 L
Oil type
303 Special
Power Shift allows shift-on-the-move between gears without clutching.
Speeds
Tractor speeds with 18.4-34 rear tires.

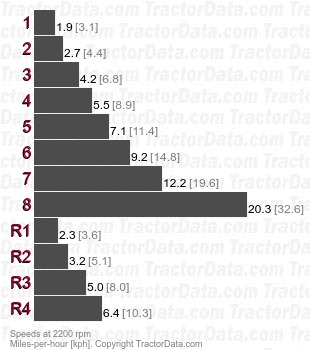

4020 Hi-Crop Power Shift full power shift speeds
