Tractors > Challenger > MT555B

Challenger MT555B Transmission



Challenger MT555B tractor photo
2004 - 2011
Model year
MT500B Series
Row-Crop tractor
Series map:
MT545B
MT555B
MT565B
143.0hp
153.0hp
168.0hp
Transmission options
continuously variable transmission
32-speed partial power shift
Transmission
TransmissionTechStar CVT
Typecontinuously variable transmission
Gearsinfinite forward and reverse (two-range)
Oil capacity61.2 qts
57.9 L
Speeds
50 KPH speeds available with front-axle suspension.
MT555B TechStar CVT continuously variable transmission speeds
Transmission
TransmissionAutoPower IV
Typepartial power shift
Gears32 forward and reverse
Clutchhydraulic wet disc
Oil capacity61.2 qts
57.9 L
Four synchronized gears (1-4) in two synchronized ranges (low/high) with a four-speed (A-D) power shift on the left-hand power shuttle lever.
Speeds
With 20.8R38 rear tires.

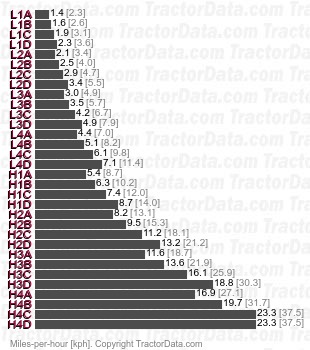

MT555B AutoPower IV partial power shift speeds
