| | 1964 - 1969 |
| 50 Series | | Standard-tread tractor |
|
Series map:
1650
1850 Wheatland
73.3hp*
102.2hp*
*Estimated engine power for comparison only.
| Transmission options |
| 6-speed unsynchronized |
| 12-speed partial powershift |
| 18-speed partial power shift |
| Transmission |
| Type | unsynchronized
|
| Gears | 6 forward and 2 reverse
|
| Clutch | 330mm dry disc
|
| Oil capacity | 43 qts
40.7 L
|
| Speeds |

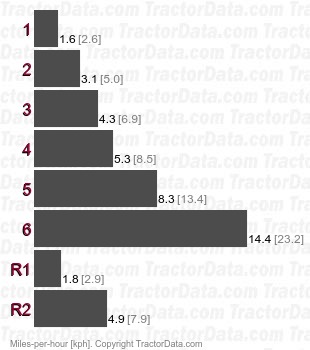

| With 18.4-34 rear tires. |
|
| Transmission |
| Transmission | Hydra-Power
|
| Type | partial powershift
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 330mm dry disc
|
| Speeds |

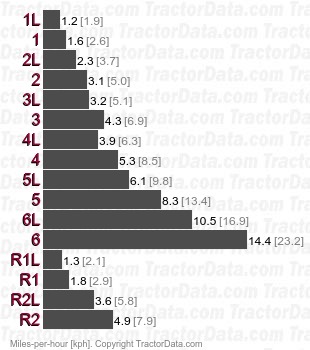

| With 18.4-34 rear tires. |
|
| Transmission |
| Transmission | Hydraul-Shift
|
| Type | partial power shift
|
| Gears | 18 forward and 6 reverse
|
| Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive. |
