New Holland 9482
|
|
| Production | |
| Distributor | New Holland |
| Manufacturer | Versatile |
| Four-wheel Drive (4WD) tractor | |
| Built in Winnipeg, Manitoba, Canada | |
| New Holland 9482 Engine | |
| Cummins 10.8L 6-cyl diesel | |
 Engine details ... |
| New Holland 9482 Transmissions | |
| 12-speed partially synchronized | |
| 12-speed full power shift | |
 Transmission details ... |
| New Holland 9482 Power | |
| Engine | 310 hp 231.2 kW |
| Drawbar (claimed) | 239 hp 178.2 kW |
| PTO (claimed) | 274 hp 204.3 kW |
| Drawbar (tested) | 239.1 hp 178.3 kW |
| PTO (tested) | 283.9 hp 211.7 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic dry disc brakes | |
| Cab standard with air-conditioning. | |
| Photos | |
 | |
 New Holland 9482 photos... | |
| Capacity | |
| Fuel | 245 gal*Total capacity 927.3 L |
| 230 gal*Usable capacity 870.6 L | |
| Hydraulic system | 31 gal 117.3 L |
| 33 gal (with 3-point) 124.9 L | |
| Front hubs | 8 qts 7.6 L |
| Front diff. | 28.4 qts 26.9 L |
| Rear hubs | 8 qts 7.6 L |
| Rear diff. | 28.4 qts 26.9 L |
| Hydraulics | |
| Type | closed center load sensing |
| Capacity | 31 gal 117.3 L |
| 33 gal (with 3-point) 124.9 L | |
| Pressure | 2250 psi 155.1 bar |
| Valves | 1 to 4 |
| Pump flow | 45 gpm 170.3 lpm |
| SCV flow | 30 gpm 113.6 lpm |
| Steering flow | 27 gpm 102.2 lpm |
| Steering press. | 2500 psi 172.4 bar |
| Tractor hitch | |
| Rear Type | IVN/3 OptOptional |
| Rear lift (at 24"/610mm) | 13000 lbs 5896 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent OptOptional |
| Clutch | electro-hydraulic wet disc |
| Rear PTO Type | 1000 (1.75) |
| Engine RPM | 1000@2100 |
| Dimensions & Tires | |
| Wheelbase | 133 inches 337 cm |
| Weight | 18844 to 30000 pounds |
| Front tire | 20.8R42 |
| Rear tire | 20.8R42 |
 Full dimensions and tires ... | |
| 9482 Serial Numbers | |
| Location: | Rear lower-left side of the tractor cab, just above platform. |
| 1996 | D103399 |
| 1997 | D104389 |
| 1998 | D106500 |
| 1999 | D107868 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 130 |
| Charging volts | 12 |
| Batteries | 3 |
| Battery CCA | 625 |
| Battery volts | 12 |
| Battery Group | SAE31 |

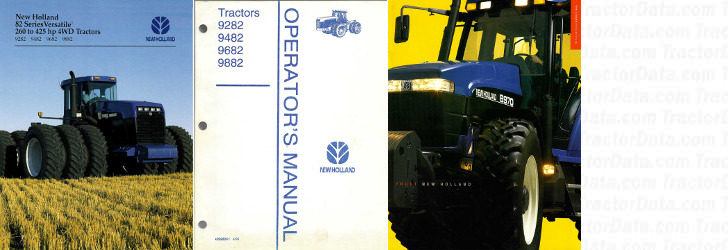

| References | |
 | |
| 82 Series Versatile 260 to 425 hp 4WD Tractors published in 1995, by New Holland | |
| Operator's Manual Tractors 9282, 9482, 9682 and 9882 (42928241) published in 1996 | |
| North American Buyer's Guide published in 1997, by New Holland |
