| | 1996 - 2000 |
| 9082 Series | | Four-wheel Drive (4WD) tractor | | Versatile built |
|
Series map:
9282
9482
9682
260.0hp
310.0hp
360.0hp
| Transmission options |
| 12-speed partially synchronized |
| 12-speed full power shift |
| Transmission |
| Transmission | Quadra-Sync
|
| Type | partially synchronized
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 11-inch hydraulic wet disc
|
| Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears. |

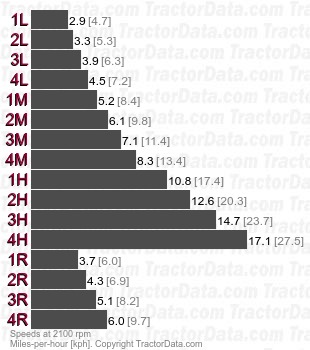

| Speeds |
| With 20.8R42 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | Power Shift
|
| Type | full power shift
|
| Gears | 12 forward and 2 reverse
|
| Clutch | 9-inch hydraulic
|
| Power shift transmission operated with a single control lever. Lever is moved ahead for forward range and to the back for reverse range, the neutral-lock button must be pressed to move the lever into range. Pushing right up-shifts and left down-shifts. Transmission always begins in first gear. Pressing the clutch while in motion will cause the transmission to automatically down-shift to match ground speed. |

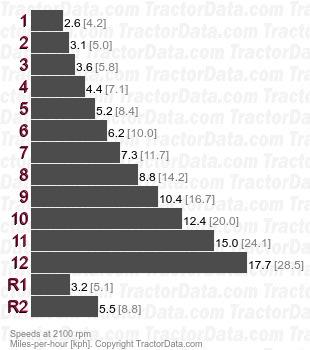

| Speeds |
| With 20.8R42 rear tires. |
|
