| | 2004 - 2011 |
|
| MT500B Series | | Row-Crop tractor |
|
Series map:
MT525B
MT535B
118.0hp
133.0hp
| Transmission options |
| 32-speed partial power shift |
| 24-speed partial power shift |
| continuously variable transmission |
| Transmission |
| Transmission | AutoPower IV
|
| Type | partial power shift
|
| Gears | 32 forward and reverse
|
| Clutch | hydraulic wet disc
|
| Four synchronized gears (1-4) in two synchronized ranges (low/high) with a four-speed (A-D) power shift on the left-hand power shuttle lever. |

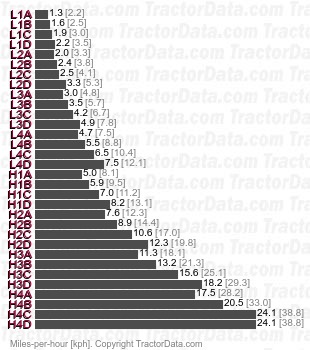

| Speeds |
| With 18.4R38 rear tires. |
|
| Transmission |
| Transmission | AutoPower VI
|
| Type | partial power shift
|
| Gears | 24 forward and reverse
|
| Four gears with six power shift ranges. The AutoPower VI became acailable in 2005. |
| Transmission |
| Transmission | TechStar CVT
|
| Type | continuously variable transmission
|
| Gears | infinite forward and reverse (2-range)
|
| Oil capacity | 59.2 qts
56.0 L
|

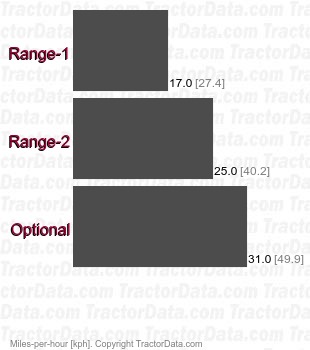

| Speeds |
| 50 KPH speeds available with front-axle suspension. |
|
