Tractors > Minneapolis-Moline > ZA

Minneapolis-Moline ZA



Minneapolis-Moline ZA tractor photo
1949 - 1953
Row-Crop tractor
Series map:
ZA
40.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerMinneapolis-Moline
Row-Crop tractor
Built in Minneapolis, Minnesota, USA
Variants
ZAUtricycle front
ZASstandard front
ZANsingle front wheel
ZAEadjustable wide front
ZASIindustrial
Minneapolis-Moline ZA Engine
Minneapolis-Moline 3.4L 4-cyl gasoline
Fuel tank19 gal
71.9 L
Engine details ...
Minneapolis-Moline ZA Transmission
5-speed unsynchronized gear
Transmission details ...
Minneapolis-Moline ZA Power
Plows2-3 (14-inch)
Drawbar (tested)32.07 hp
23.9 kW
Belt (tested)36.20 hp
27.0 kW
Performance test details ...
Mechanical
Two-wheel drive
Final drivesbull gear
Manual steering
Mechanical drum brakes
Open operator station.
Photos
Minneapols-Moline ZAU.
Minneapolis-Moline ZA photos...
Power Take-off (PTO)
Rear PTO Type540
Dimensions & Tires
ZAU Wheelbase82 inches
208 cm
ZAE Wheelbase90.125 inches
228 cm
Weight3750 to 4290 pounds
Front tire5.50x16
Rear tire11x38
Full dimensions and tires ...

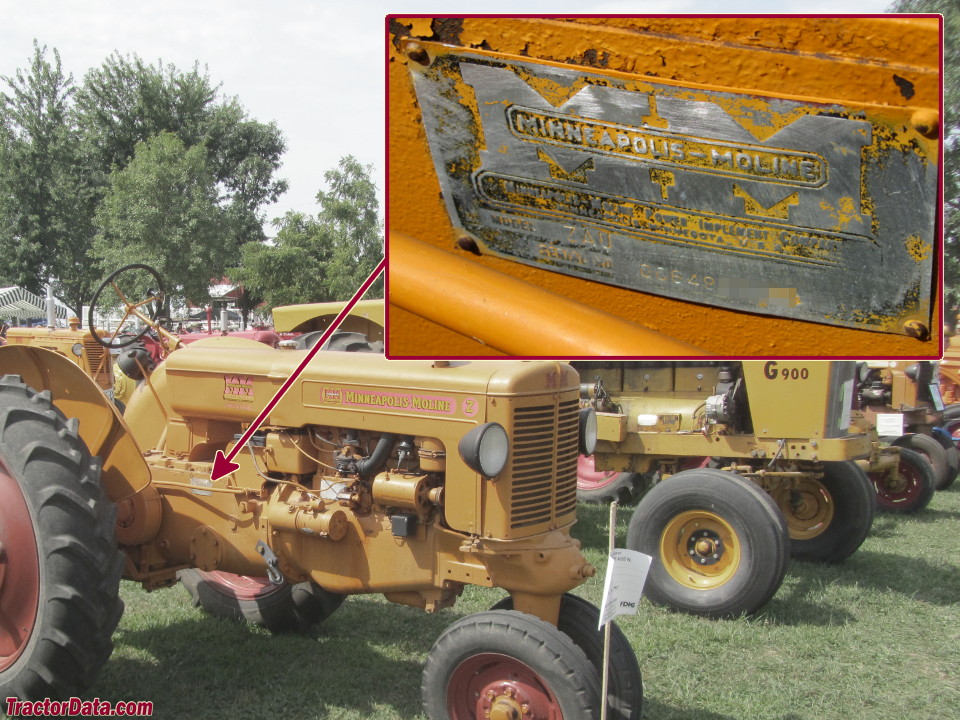

ZA Serial Number Location
Minneapolis-Moline ZA serial number location
Left side of tractor frame, ahead of operator platform.
ZA Serial Numbers
19490064900001 (ZAU)
19500065000001 (ZAU)
195000600001 (ZAU)
195100605436 (ZAU)
195200609940 (ZAU)
Final00614658 (ZAU)
19490094900001 (ZAE)
19500095000001 (ZAE)
195000900001 (ZAE)
195100900374 (ZAE)
195200900577 (ZAE)
195300900998 (ZAE)
Final00901122 (ZAE)
19490084900001 (ZAN)
19500085000001 (ZAN)
195000800001 (ZAN)
195100800239 (ZAN)
195200800443 (ZAN)
195300800619 (ZAN)
Final00800620 (ZAN)

FAQ: How to read a serial number table.
Belt Pulley
Diameter15.125 inches
38 cm
Width7 inches
17 cm
RPM786
Speed3,100 ft/min
944.88 meters/min
Electrical
Groundpositive
Battery volts6
References
ZA references literature
Sales Manual published in 1952, by Minneapolis-Moline
The New "Z" Tractors published in 1949, by Minneapolis-Moline
