Minneapolis-Moline UTU



Minneapolis-Moline UTU tractor photo
1938 - 1955
Model U Series
Row-Crop tractor
Series map:
UTU
47.5hp*
*Estimated engine power for comparison only.
Production
ManufacturerMinneapolis-Moline
Row-Crop tractor
Built in Minneapolis, Minnesota, USA
Total built33,268
Variants
UTUrow-crop tricycle
UTErow-crop wide front
UTNrow-crop single front
UDUdiesel row-crop
UTS-Ddiesel standard
UTChigh-crop
UTSstandard-front
UDLXComfotractor with cab
UTOXComfotractor roadster
UTILindustrial with shuttle shift
UTIL-Mmilitary
Minneapolis-Moline UTU Engine
Minneapolis-Moline 4.6L 4-cyl gasoline
Fuel tank21.5 gal
81.4 L
Engine details ...
Minneapolis-Moline UTU Transmission
5-speed unsynchronized gear
Transmission details ...
Minneapolis-Moline UTU Power
Drawbar (tested)35.16 hp
26.2 kW
Belt (tested)42.71 hp
31.8 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
Open operator station.
Photos
Minneapolis-Moline UTU, tricycle front end.
Minneapolis-Moline UTU photos...
Power Take-off (PTO)
Rear PTO Type540
Dimensions & Tires
Wheelbase88 inches
223 cm
Weight5500 lbs
2494 kg
Front tire6.00x16
Rear tire11.00x36
Full dimensions and tires ...

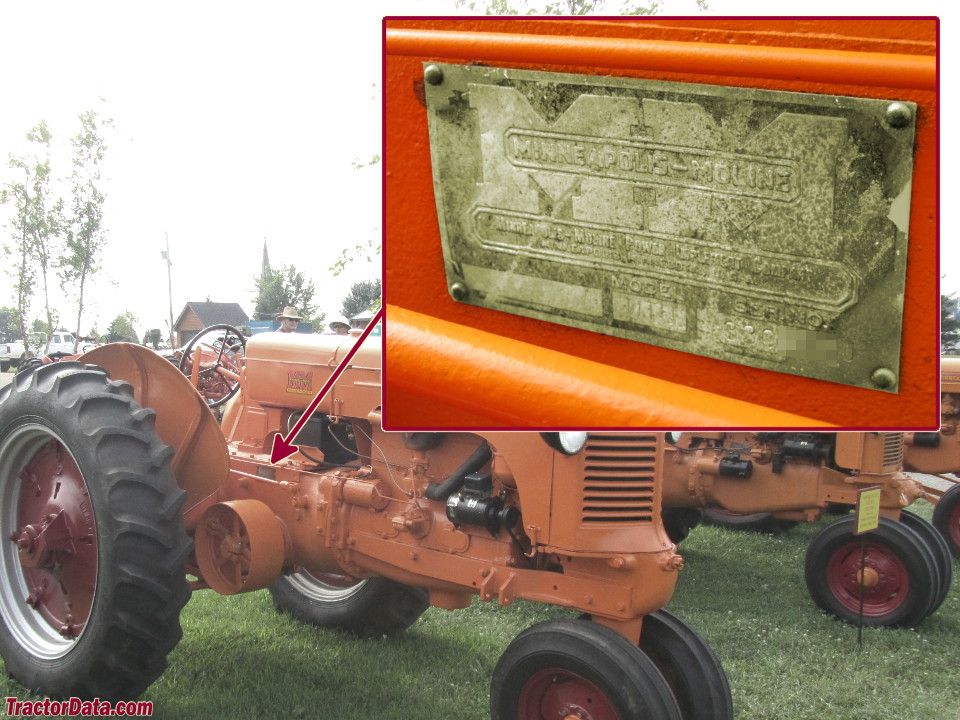

UTU Serial Number Location
Minneapolis-Moline UTU serial number location
Gear case, right side
UTU Serial Numbers
1938310026
1939310647
1940312451
1941314893
1942316501
1943317702
1944318163
1945321102
1946325231
1947329752
1948337418
19480114800001
19490114900001
19500115000001
195101105384
195201110118
1953---
195401113450
195501113454
Final01113456

FAQ: How to read a serial number table.
Belt Pulley
Diameter15.5 inches
39 cm
Width7 inches
17 cm
RPM733
Speed2975 ft/min
906.78 meters/min
References
UTU references literature
The Unusual Universal U Visionlined Tractor published in 1945, by Minneapolis-Moline
Sales Manual published in 1952, by Minneapolis-Moline
