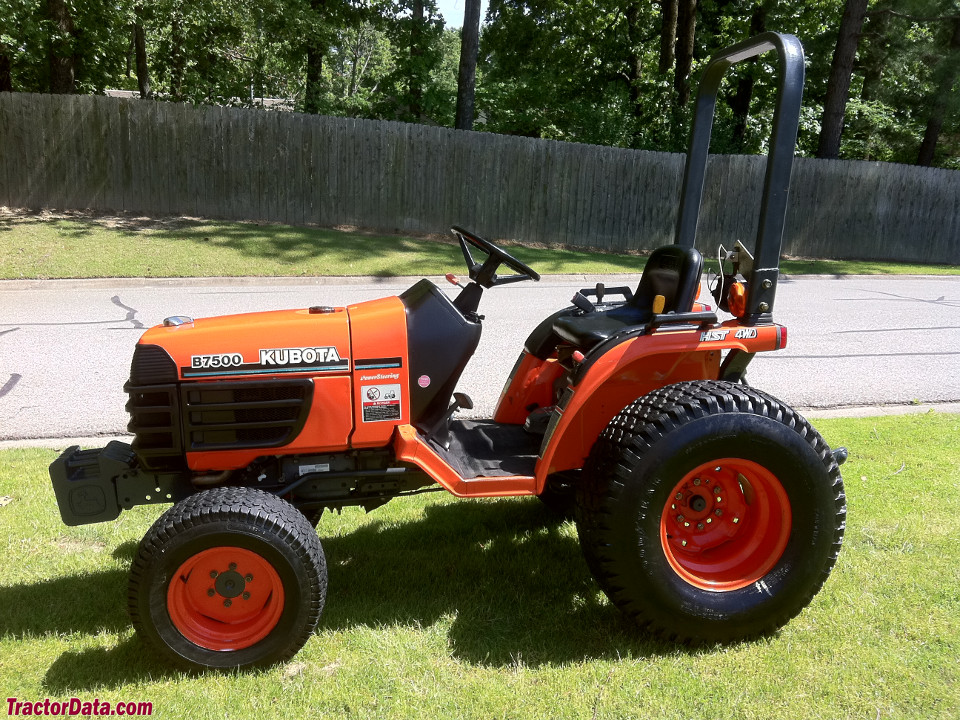

Kubota B7500
| | 2000 - 2003 |
| B Series | | Compact Utility tractor |
|
Series map:
B7400
B7500
16.0hp
21.0hp
| Production |
| Manufacturer | Kubota
|
| Compact Utility tractor |
| Variants |
| B7500D | gear drive
|
| B7500HSD | hydrostatic
|
| Kubota B7500 Power |
| Engine (gross) | 21 hp
15.7 kW
|
| Gear PTO (claimed) | 17 hp
12.7 kW
|
| Hydro PTO (claimed) | 16 hp
11.9 kW
|
| Mechanical |
| Four-wheel drive |
| Final drives | spur gear
|
| Differential lock | mechanical rear
|
| Power steering |
| Wet disc brakes |
| Two-post ROPS |
| Capacity |
| Fuel | 5 gal
18.9 L
|
| Front axle | 3.4 qts
3.2 L
|
| Hydraulics |
| Type | open center
|
| Total flow | 7 gpm
26.5 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | directional control
|
| Rear lift (at ends) | 1356 lbs
615 kg
|
| Rear lift (at 24"/610mm) | 1058 lbs
479 kg
|
| Power Take-off (PTO) |
| Gear Rear PTO | transmission
|
| Hydro Rear PTO | independent
|
| Rear PTO Type | 540 (1.375)
|
| Mid PTO Type | 2500
|
| Electrical |
| Ground | negative
|
| Battery CCA | 433
|
| Battery volts | 12
|
| References |
 |
| B7400/B7500 B2410/B2710/B2910 published in 1999, by Kubota |
| B7400/B7500/B7800 B2410/B2710/B2910 published in 2003, by Kubota |
