Mitsubishi MT2201

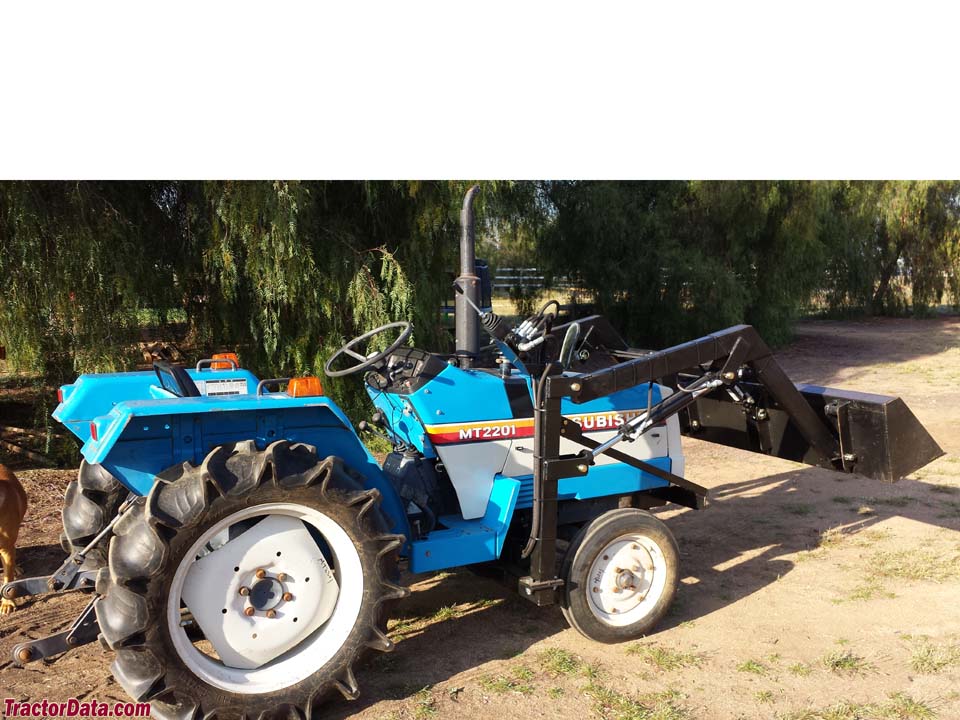

Mitsubishi MT2201 tractor photo
1982 - 1985
Compact Utility tractor
Series map:
MT2201
MT2501
16.2kw
18.4kw
Production
ManufacturerMitsubishi
Compact Utility tractor
Variants
MT2201D4WD
Mitsubishi MT2201 Engine
Mitsubishi 1.3L 4-cyl diesel
Fuel tank7.4 gal
28.0 L
Engine details ...
Mitsubishi MT2201 Power
Engine21.7 hp
16.2 kW
Mechanical
Two- or four-wheel drive
Open operator station.
Tractor hitch
Rear TypeJIS1
Power Take-off (PTO)
Rear PTO Type540 (1.375)
Engine RPM562@2400
 764@2400
 1020@2400
 1427@2400
Dimensions & Tires
2WD Wheelbase62 inches
157 cm
4WD Wheelbase62.8 inches
159 cm
Weight2138 to 2392 pounds
Front tire4.00-15
2WD Rear tire9.5-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References
MT2201 references literature
MT2201 - MT2501 published by Mitsubishi
