John Deere 4400 Engine


John Deere 4400 tractor photo
1998 - 2001
4000 Compact Series
Compact Utility tractor
Series map:
4300
4400
4500
32.2hp
35.7hp
39.0hp
Engine Detail
Yanmar 3TNE88
diesel
3-cylinder
liquid-cooled
Displacement100.2 ci
1.6 L
Bore/Stroke3.46x3.54 inches
88 x 90 mm
Power (net)33.7 hp
25.1 kW
Power (gross)35.7 hp
26.6 kW
Fuel systemdirect injection
Air cleanerdry
Pre-heatingair heater
Compression18:1
Rated RPM2700
Idle RPM950-2810
Operating RPM950-2700
Starter volts12
Starter power1.9 hp
1.4 kW
Coolant capacity6.1 qts
5.8 L
Engine Oil

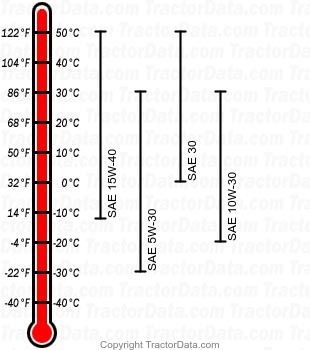

4400 diesel engine oil chart
Oil capacity4.5 qts
4.3 L
Oil change200 h
