Tractors > Fiat > M135

Fiat M135 Engine



Fiat M135 tractor photo
1996 - 1999
Series map:
M115
M135
M160
115.0hp
135.0hp
160.0hp
Engine Detail
New Holland Genesis
turbocharged diesel
6-cylinder
liquid-cooled
Displacement456 ci
7.5 L
Bore/Stroke4.5x5.0 inches
114 x 127 mm
Power135 hp
100.7 kW
Compression17.5:1
Rated RPM2200
Idle RPM700-2420
Operating RPM1500-2200
Torque RPM1400
Firing order1-5-3-6-2-4
Starter volts12
Starter power4.9 hp
3.7 kW
Coolant capacity25.4 qts (ROPS)
24.0 L
 27.5 qts (cab)
26.0 L
Intake valve clearance0.016 inches (cold)
0.406 mm
Exhaust valve clearance0.018 inches (cold)
0.457 mm
Engine Oil

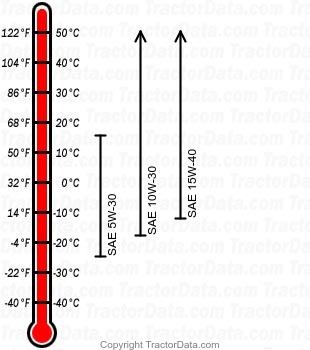

M135 diesel engine oil chart
Oil capacity20.8 qts
19.7 L
