John Deere 6430


John Deere 6430 tractor photo
2007 - 2012
6030 Series
Series map:
6330
6430
105.0hp
115.0hp
Production
ManufacturerJohn Deere
Built in Mannheim, Baden-Württemberg, Germany
Variants
6430 Premiumpremium cab and upgraded features
John Deere 6430 Engine
John Deere 4.5L 4-cyl diesel
Engine details ...
John Deere 6430 Transmissions
12-speed fully synchronized
16-speed synchronized with power shuttle
16-speed partial power shift
24-speed partial power shift
Transmission details ...
John Deere 6430 Power
Engine (gross)120 hp
89.5 kW
PTO (claimed)90 hp
67.1 kW
 99 hp (after 2009)
73.8 kW
Drawbar (tested)88.45 hp
66.0 kW
PTO (tested)111.06 hp
82.8 kW
Performance test details ...
Mechanical
Drive4x2 2WD
 4x4 MFWD 4WD optional
Steeringhydrostatic power
Hydraulic wet disc brakes
Two-post ROPS. Cab optional.
Capacity
Fuel43.6 gal
165.0 L
 48 gal (optional)
181.7 L
Hydraulic system13.7 gal
51.9 L
Hydraulics
Typeopen-center load sensing
 closed-center pressure-flow compensated (optional)
Capacity13.7 gal
51.9 L
Pressure2900 psi
200.0 bar
Valves1 to 3
Total flow21.1 gpm
79.9 lpm
 29 gpm (optional)
109.8 lpm
Tractor hitch
Rear TypeII/III
Rear lift (at 24"/610mm)4,450 lbs
2018 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
 540/1000
Dimensions & Tires
Wheelbase94.5 inches
240 cm
Weight10,000 lbs
4536 kg
Full dimensions and tires ...
6430 Serial Number Location

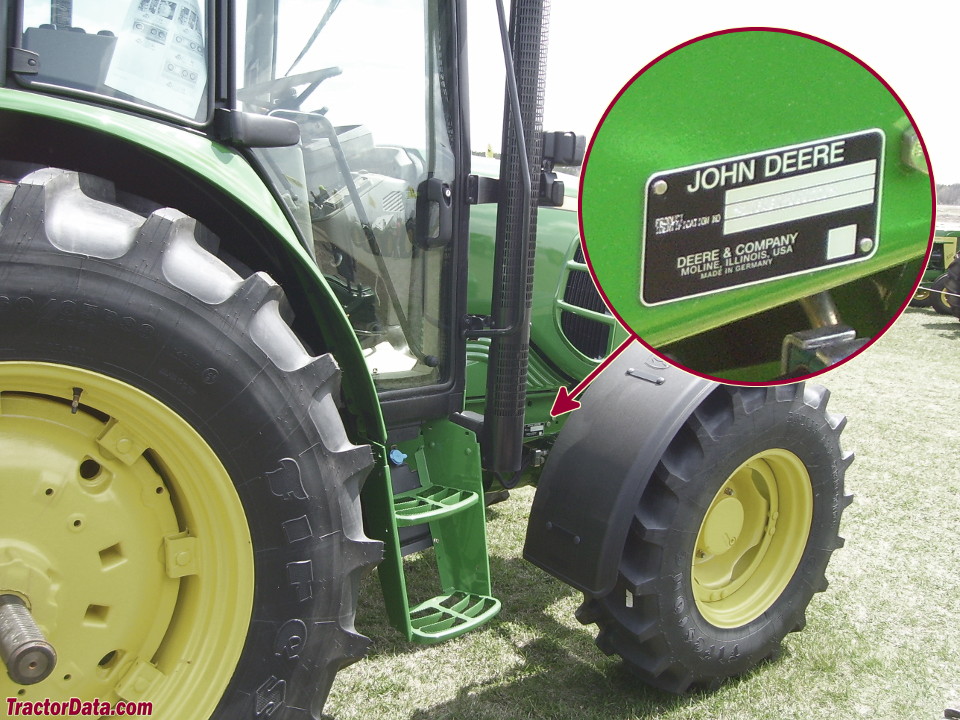

John Deere 6430 serial number location
On the main tractor frame, right side, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps115
Battery volts12
References
6430 references literature
6030 and 7030 Series Tractors published in 2007, by John Deere
Specialty Tractors published in 2008, by John Deere
Specialty Tractors published in 2012, by John Deere
