John Deere 6430 Tests


John Deere 6430 tractor photo
2007 - 2012
6030 Series
Series map:
6330
6430
105.0hp
115.0hp
OCED Tractor Test 1987

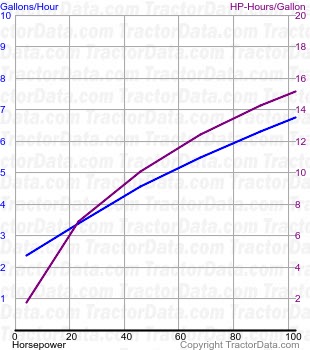

6430 fuel use from test 760
OCED Tractor Test 1987
Diesel 16-speed 4WD
April 12 - 25, 2011
Link: OCED Tractor Test 1987 file
PTO performance
Max power111.06 hp
82.8 kW
Fuel use6.7 gal/hour
25.4 l/hour
Power at rated engine speed102.46 hp
76.4 kW
Fuel use6.8 gal/hour
25.7 l/hour
Power at rated PTO speed105.41 hp
78.6 kW
Fuel use6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power88.45 hp
66.0 kW
Fuel use6.8 gal/hour
25.7 l/hour
Max pull10,125 lbs
4592 kg
