John Deere 6330 Transmission



John Deere 6330 tractor photo
2007 - 2012
6030 Series
Series map:
6230
6330
6430
94.0hp
105.0hp
115.0hp
Transmission options
12-speed fully synchronized
16-speed synchronized with power shuttle
16-speed partial power shift
24-speed partial power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Oil capacity54.8 qts
51.9 L
Speeds
With 18.4R38 rear tires.

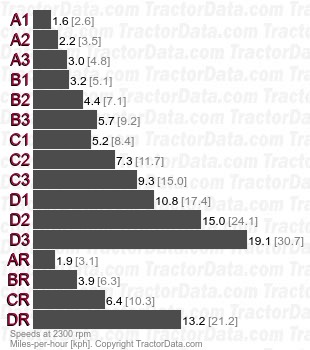

6330 SyncroPlus fully synchronized speeds
Transmission
TransmissionJohn Deere PowrReverser
Typesynchronized with power shuttle
Gears16 forward and reverse
Oil capacity54.8 qts
51.9 L
Speeds
With 18.4R38 rear tires.

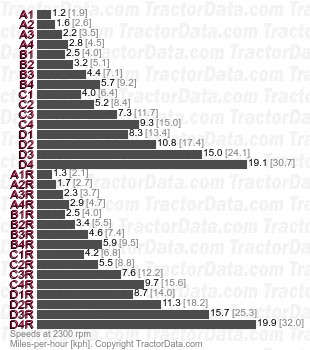

6330 PowrReverser synchronized with power shuttle speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchwet disc
Oil capacity51.6 qts
48.8 L
 52.8 qts (PowrQuad Plus)
50.0 L
Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting.
Speeds
With 18.4R38 rear tires.

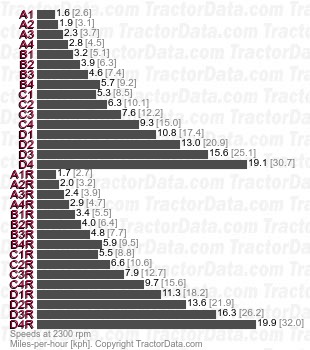

6330 PowrQuad partial power shift speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears24 forward and reverse
Oil capacity52.8 qts
50.0 L
Four gears (1-4) in six ranges (A-E) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting.
Speeds
With 18.4R38 rear tires.
6330 PowrQuad partial power shift speeds
