Series map:
6230
6330
94.0hp
105.0hp
| Transmission options |
| 12-speed fully synchronized |
| 16-speed synchronized with power shuttle |
| 16-speed partial power shift |
| 24-speed partial power shift |
| Transmission |
| Transmission | John Deere SyncroPlus
|
| Type | fully synchronized
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 54.8 qts
51.9 L
|

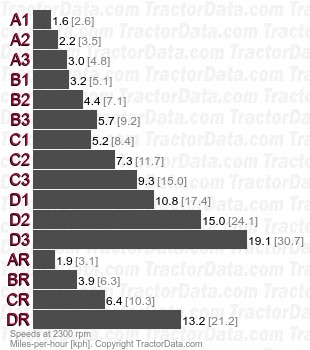

| Speeds |
| With 18.4R38 rear tires. |
|
| Transmission |
| Transmission | John Deere PowrReverser
|
| Type | synchronized with power shuttle
|
| Gears | 16 forward and reverse
|
| Oil capacity | 54.8 qts
51.9 L
|

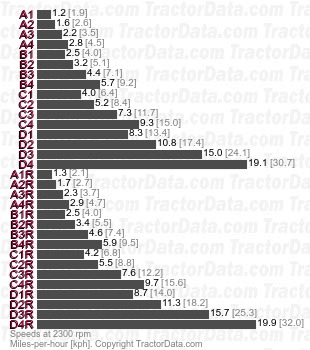

| Speeds |
| With 18.4R38 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | John Deere PowrQuad
|
| Type | partial power shift
|
| Gears | 16 forward and reverse
|
| Clutch | wet disc
|
| Oil capacity | 51.6 qts
48.8 L
|
| | 52.8 qts (PowrQuad Plus)
50.0 L
|
| Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting. |

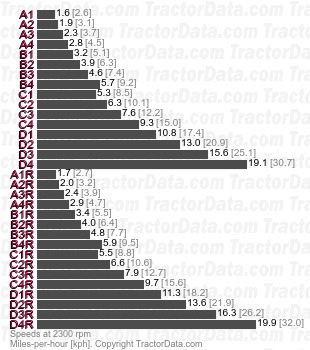

| Speeds |
| With 18.4R38 rear tires. |
|
| Transmission |
| Transmission | John Deere PowrQuad
|
| Type | partial power shift
|
| Gears | 24 forward and reverse
|
| Oil capacity | 52.8 qts
50.0 L
|
| Four gears (1-4) in six ranges (A-E) with left-hand reverser lever. Gear changes (1-4) and direction changes can be done while moving without the clutch. Clutch is required to shift range (A-D). Optional PowrQuad Plus adds push-button gear shifting. |
| Speeds |
| With 18.4R38 rear tires. |
|
