John Deere 7930 Engine


John Deere 7930 tractor photo
2007 - 2011
7030 Series
Row-Crop tractor
Series map:
7830
7930
205.0hp
220.0hp
Engine Detail
John Deere
intercooled turbocharged diesel
6-cylinder
liquid-cooled
Displacement414 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power220 hp
164.1 kW
Fuel systemhigh-pressure common rail
Cooling systemviscous fan
Air cleanerdual paper elements
Compression17:1
Rated RPM2100
Torque645 lb-ft
874.6 Nm
Torque RPM1602
Firing order1-5-3-6-2-4
Starter volts12
Oil capacity27.5 qts
26.0 L
John Deere 7930 Engine

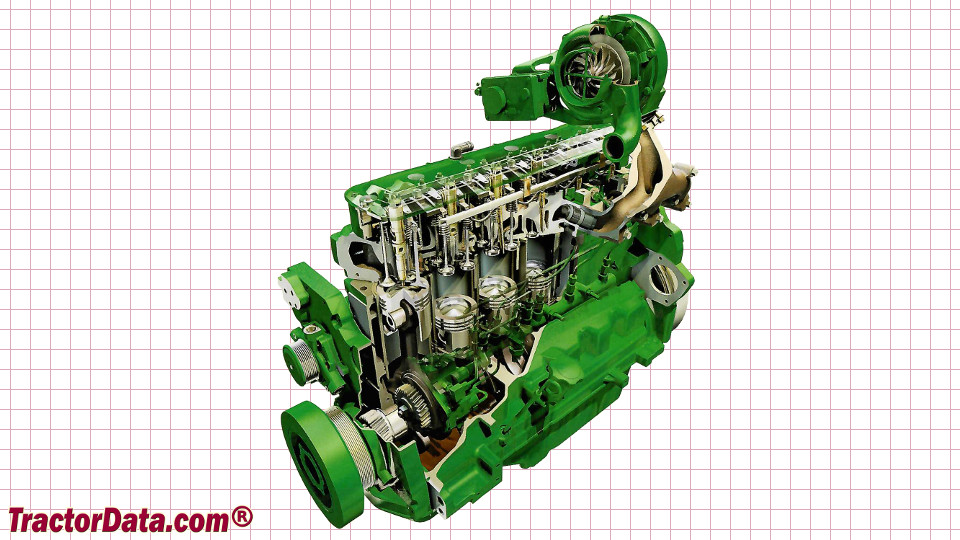

John Deere 7930 engine image
