John Deere 7830 Transmission


John Deere 7830 tractor photo
2007 - 2011
7030 Series
Row-Crop tractor
Series map:
7730
7830
7930
190.0hp
205.0hp
220.0hp
Transmission options
16-speed
20-speed
Transmission
TransmissionPowrQuad PLUS
Gears16 forward and reverse
Four push-button power shift gears (1-4) in four synchronized ranges (A-D) with left-hand power shuttle.
Speeds
With group 47 rear tires. Reverse speeds are 4% faster than forward.

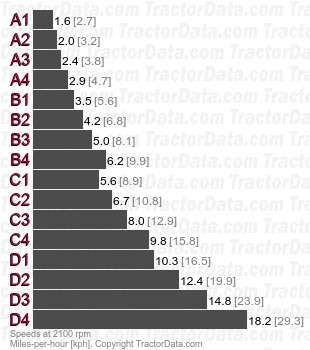

7830 PowrQuad PLUS  speeds
Transmission
TransmissionAutoQuad PLUS
Gears20 forward and reverse
Four push-button power shift gears (1-4) in five synchronized ranges (A-D) with left-hand power shuttle. Available in 40 kph and 50 kph versions.
Speeds
With group 47 rear tires. Reverse speeds are 4% faster than forward.
7830 AutoQuad PLUS  speeds
Transmission
TransmissionInfinitely Variable Transmission (IVT)
Gearsinfinite forward and reverse
