| | 2007 - 2011 |
| 7030 Series | | Row-Crop tractor |
|
Series map:
7730
7830
7930
190.0hp
205.0hp
220.0hp
| Engine Detail |
| John Deere |
| intercooled turbocharged diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 414 ci
6.8 L
|
| Bore/Stroke | 4.19x5.00 inches
106 x 127 mm
|
| Power | 205 hp
152.9 kW
|
| Fuel system | high-pressure common rail
|
| Cooling system | viscous fan
|
| Air cleaner | dual paper elements
|
| Compression | 17:1
|
| Rated RPM | 2100
|
| Firing order | 1-5-3-6-2-4
|
| Starter volts | 12
|
| Oil capacity | 27.5 qts
26.0 L
|

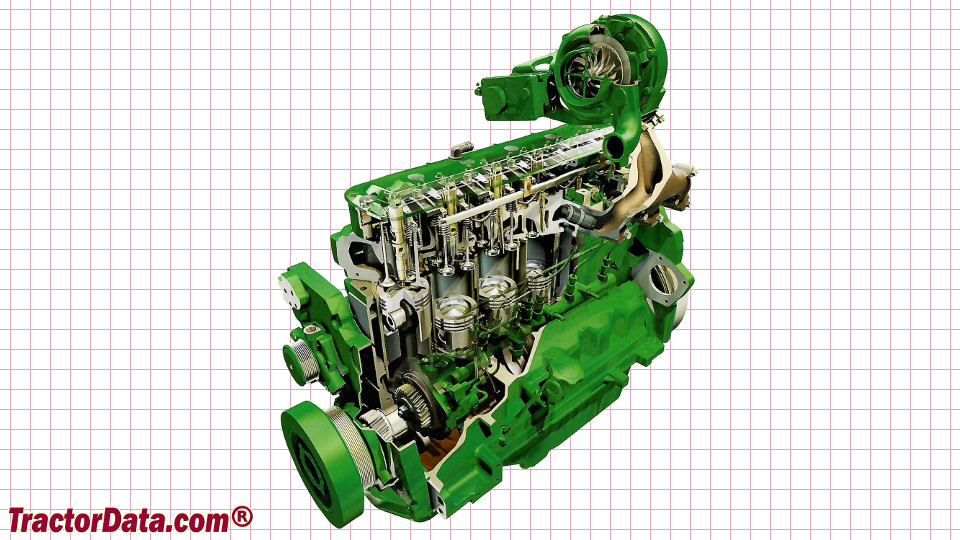

| John Deere 7830 Engine |
 |
