John Deere 7630 Tests


John Deere 7630 tractor photo
2007 - 2011
7030 Series
Row-Crop tractor
Series map:
7630
7730
175.0hp
190.0hp
OCED Tractor Test 560

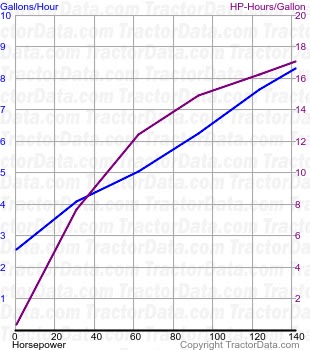

7630 fuel use from test 1893
OCED Tractor Test 560
Diesel AutoQuad Plus 4WD
March 22 - April 20, 2007
Link: OCED Tractor Test 560 file
PTO performance
Max power161.88 hp
120.7 kW
Fuel use8.9 gal/hour
33.7 l/hour
Power at rated engine speed141.66 hp
105.6 kW
Fuel use8.3 gal/hour
31.4 l/hour
Power at rated PTO speed159.73 hp
119.1 kW
Fuel use9.4 gal/hour
35.6 l/hour
Drawbar performance
Max power126.97 hp
94.7 kW
Fuel use8.4 gal/hour
31.8 l/hour
