McCormick-Deering WD-6


McCormick-Deering WD-6 tractor photo
1940 - 1952
Standard-tread tractor
Series map:
WD-6
40.4hp*
*Estimated engine power for comparison only.
Production
ManufacturerMcCormick-Deering (a part of International Harvester)
Standard-tread tractor
Built in Rock Island, Illinois, USA
Variants
ID-6industrial
MDrow-crop
W-6gasoline engine
McCormick-Deering WD-6 Engine
International Harvester 4.1L 4-cyl diesel
Fuel tank21 gal
79.5 L
Aux. fuel0.88 gal
3.3 L
Engine details ...
McCormick-Deering WD-6 Power
Drawbar (claimed)31.4 hp
23.4 kW
Belt (claimed)36.4 hp
27.1 kW
Drawbar (tested)31.02 hp
23.1 kW
Belt (tested)34.75 hp
25.9 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
No photos of the McCormick-Deering WD-6 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Rear PTOtransmission
Rear PTO Type540
Dimensions & Tires
Wheelbase76 inches
193 cm
Weight4350 lbs
1973 kg
Front tire22.50-4
Rear tire42-10
Full dimensions and tires ...
WD-6 Serial Numbers
Location:Serial number plate located on the clutch housing.
1940WDBK 516
1941WDBK 1225
1942WDBK 3718
1943----
1944WDBK 6371
1945WDBK 9509
1946WDBK 14019
1947WDBK 16811
1948WDBK 24020
1949WDBK 28906
1950WDBK 35566
1951WDBK 39443
1952WDBK 45175

FAQ: How to read a serial number table.
Belt Pulley
Diameter11 inches
27 cm
Width7.5 inches
19 cm
RPM899
Speed2588 ft/min
788.82 meters/min
References

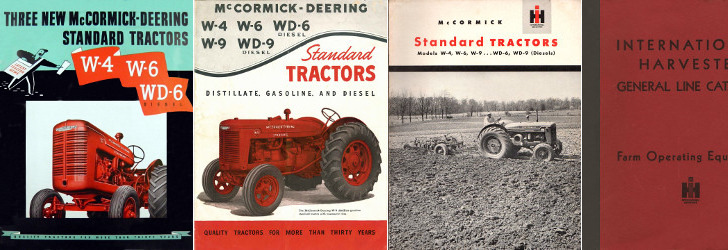

WD-6 references literature
Three New McCormick-Deering Standard Tractors published in 1940, by International Harvester
McCormick-Deering Standard Tractors published in 1946, by International Harvester
McCormick Standard Tractors published by International Harvester
General Line Catalog published in 1949, by International Harvester
