Massey Ferguson 4370
|
|
| Production | |
| Manufacturer | Massey Ferguson (a part of AGCO) |
| Utility tractor | |
| Built in Coventry, England | |
| Massey Ferguson 4370 Engine | |
| Perkins 6.0L 6-cyl diesel | |
| Cab Fuel tank | 38 gal 143.8 L |
| ROPS Fuel tank | 34.3 gal 129.8 L |
| Cab Fuel tank | 54.4 galOptOptional 205.9 L |
| ROPS Fuel tank | 52.8 galOptOptional 199.8 L |
 Engine details ... | |
| Massey Ferguson 4370 Transmissions | |
| 12-speed gear | |
| 12-speed power shuttle | |
| 24-speed power shuttle | |
 Transmission details ... |
| Massey Ferguson 4370 Power | |
| Engine (gross) | 116 hp 86.5 kW |
| Engine (net) | 109 hp 81.3 kW |
| PTO (claimed) | 99 hp 73.8 kW |
| Drawbar (tested) | 79.0 hp 58.9 kW |
| PTO (tested) | 101.5 hp 75.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | electro-hydraulic front and rear |
| Power steering | |
| Independent hydraulic wet disc brakes | |
| Two-post folding ROPS. Cab optional with air-conditioning. | |
| Hydraulics | |
| Type | open center |
| Pressure | 3046 psi 210.0 bar |
| Valves | 2 to 4 |
| SCV flow | 10 gpm 37.9 lpm |
| 17.4 gpm*Combined flow or optional dedicated flow system with power shuttle transmission. 65.9 lpm | |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| ROPS Rear lift (at 24"/610mm) | 5710 lbs 2590 kg |
| Cab Rear lift (at 24"/610mm) | 7240 lbs 3284 kg |
| Rear Arms | telescopic lower links |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@1902 |
| 1000@2000 | |
| Dimensions & Tires | |
| Wheelbase | 103 inches 261 cm |
| Weight | 6959 to 9105 pounds |
 Full dimensions and tires ... | |
| Massey Ferguson 4370 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 45 |
| Cab Charging amps | 80 |
| Cab Charging amps | 120 OptOptional |
| Batteries | 2 |
| Battery CCA | 590 |
| Battery volts | 12 |

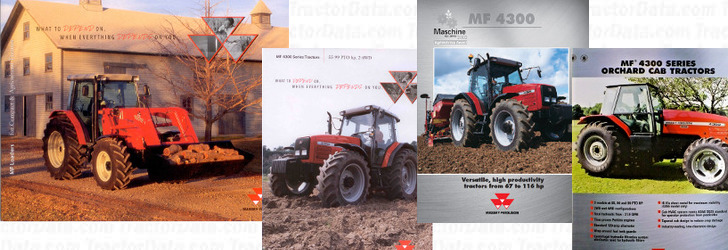

| References | |
 | |
| MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson | |
| 4300 Series Tractors published in 2001, by Massey Ferguson | |
| 4300 Series Tractors published in 2002, by Massey Ferguson | |
| MF 4300 Series Orchard Cab Tractors published in 2001, by Massey Ferguson |
