| | 2002 - 2003 |
| 4300 Series | | Utility tractor |
|
Series map:
4320
4325
4335
64.0hp
67.0hp
78.0hp
| Transmission options |
| 8-speed gear |
| 12-speed gear |
| 12-speed mechanical shuttle |
| 12-speed power shuttle |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Clutch | dry disc
|
| Transmission |
| Type | gear
|
| Gears | 12 forward and 4 reverse
|
| Clutch | dry disc
|
| Transmission |
| Type | mechanical shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | dry disc
|
| Also available as an 8-speed shuttle on ROPS-equipped models. |
| Transmission |
| Type | power shuttle
|
| Gears | 12 forward and reverse
|
| Clutch | wet disc
|

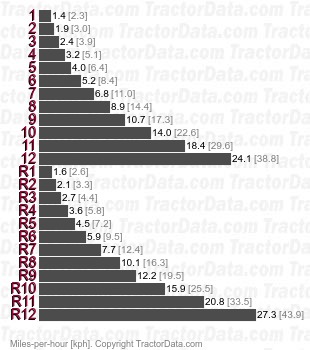

| Speeds |
|
