John Deere 70 Standard
| | 1954 - 1956 |
| Standard-tread tractor |
|
Series map:
70 Standard
55.6hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Standard-tread tractor |
| Built in Waterloo, Iowa, USA |
| Total built | 5004 (total)
|
| | 3248 (diesel)
|
| | 1035 (gasoline)
|
| | 385 (all-fuel)
|
| | 336 (LP-gas)
|
| Variants |
| 70 | row-crop
|
| 70S | standard tread
|
| 70HC | high-crop
|
| John Deere 70 Standard Power |
| Belt (claimed) | 50 hp
37.3 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power OptOptional
|
| Mechanical expanding shoe brakes |
| Open operator station. Steel cab optional. |
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| | independent OptOptional
|
| Rear PTO Type | 540 (1.375)
|

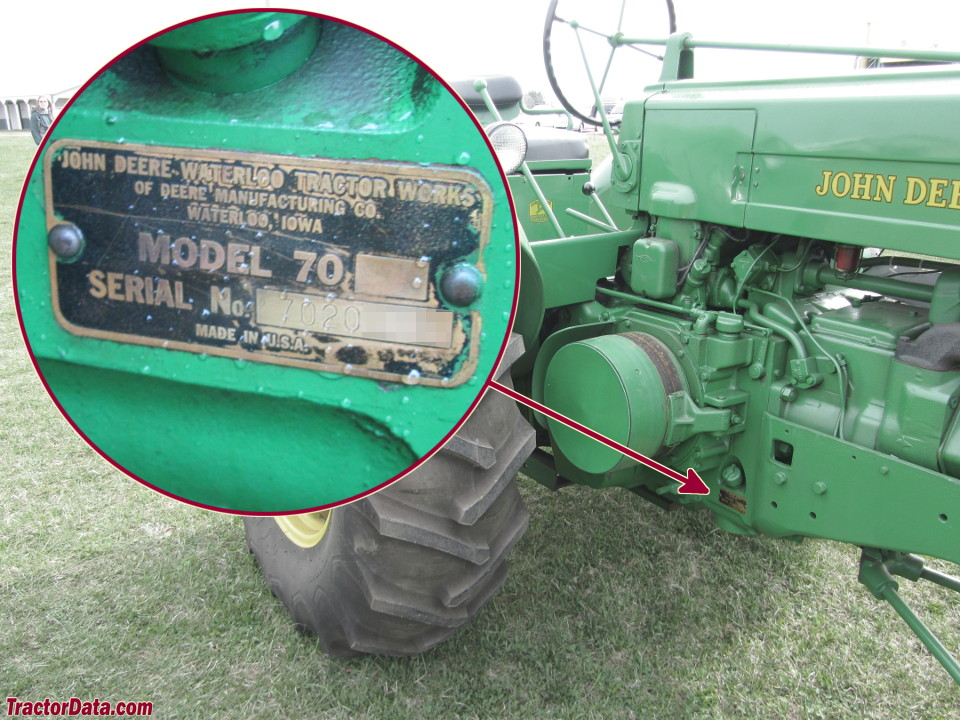

| 70 Standard Serial Number Location |
 |
| Right side of tractor, below the belt pulley. |
| Belt Pulley |
| Diameter | 12.875 inches
32 cm
|
| Width | 7.375 inches
18 cm
|
| RPM | 1125
|
| Speed | 3790 ft/min
1155.19 meters/min
|
| Electrical |
| Ground | positive
|
| Batteries | 2 (gas)
|
| | 1 (diesel)
|
| Battery volts | 6
|
| References |
 |
| The First Numbered Series of John Deere Tractors published in 2004, by Hain Publishing |
| 70 Diesel Standard Tractor published in 1954, by John Deere |
