| | 1990 - 1998 |
| 66 Series | | Utility tractor |
|
Series map:
35-66
45-66
25.7kw
33.1kw
| Engine Detail |
| Lombardini LDW 1503 |
| diesel |
| 3-cylinder |
| liquid-cooled inline |
| Displacement | 94.6 ci
1.6 L
|
| Bore/Stroke | 3.46x3.35 inches
88 x 85 mm
|
| Power | 34.5 hp
25.7 kW
|
| Compression | 17:1
|
| Rated RPM | 2800
|
| Torque | 75.24 lb-ft
102.0 Nm
|
| Torque RPM | 2500
|
| Starter | electric
|
| Starter volts | 12
|

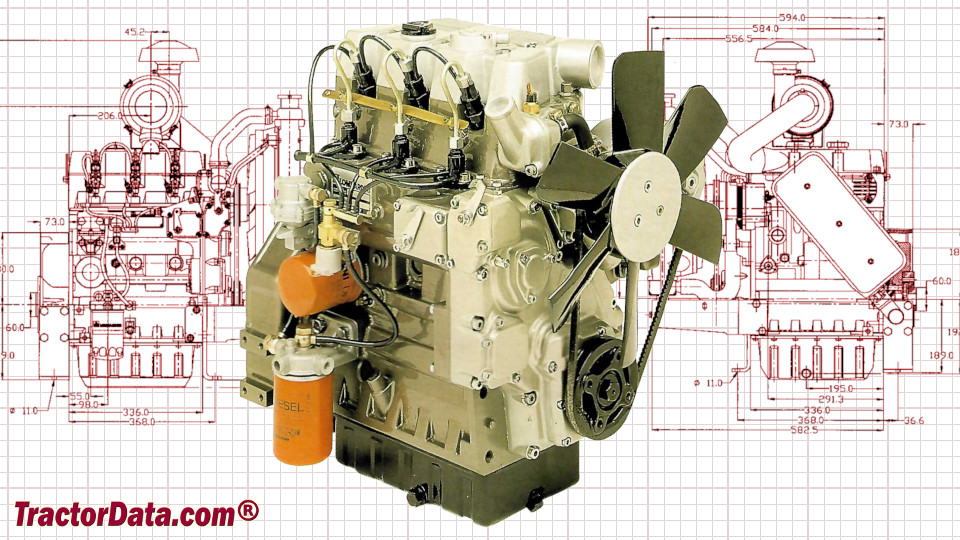

| Fiat 35-66 Engine |
 |
