Tractors > International Harvester > TD-6

International Harvester TD-6 Tests



International Harvester TD-6 tractor photo
1940 - 1969
Model year
Agricultural Crawler tractor
Tractor Tests
NTTL 345: diesel 5-speed crawler
NTTL 462: diesel 5-speed crawler
Nebraska Tractor Test 345

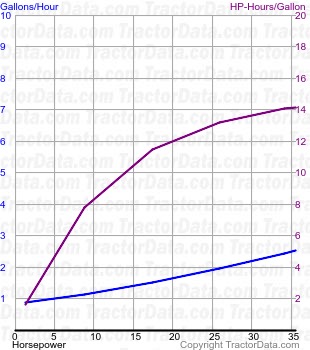

TD-6 fuel use from test 345
Nebraska Tractor Test 345
Diesel 5-speed crawler
May 6 - June 1, 1940
Link: Nebraska Tractor Test 345 file
Belt power (max)34.55 hp
25.8 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power28.14 hp
21.0 kW
Gear 2 used for power test.
Max pull7,160 lbs
3247 kg
Gear 1 used for pull test.
Nebraska Tractor Test 462

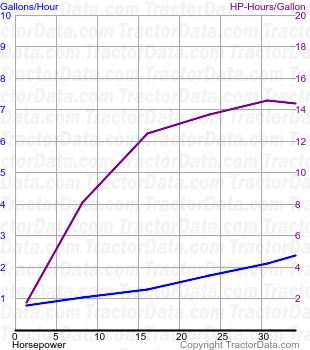

TD-6 fuel use from test 462
Nebraska Tractor Test 462
Diesel 5-speed crawler
June 25 - July 10, 1951
Link: Nebraska Tractor Test 462 file
Belt power (max)38.20 hp
28.5 kW
Belt fuel use (max)2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power31.75 hp
23.7 kW
Gear 2 used for power test.
Max pull8,131 lbs
3688 kg
Gear 1 used for pull test.
