Tractors > International Harvester > TD-5

International Harvester TD-5 Transmission



International Harvester TD-5 tractor photo
1959 - 1964
Agricultural Crawler tractor
Transmission options
5-speed
10-speed two-speed power shift
Transmission
TransmissionSliding spur gears
Gears5 forward and 1 reverse
Oil capacity13.2 qts
12.5 L
Speeds
TD-5 Sliding spur gears speeds
Transmission
TransmissionTorque-Amplifier
Typetwo-speed power shift
Gears10 forward and 2 reverse
Oil capacity15.6 qts
14.8 L
 30.6 qts (with hydraulics)
29.0 L
Speeds

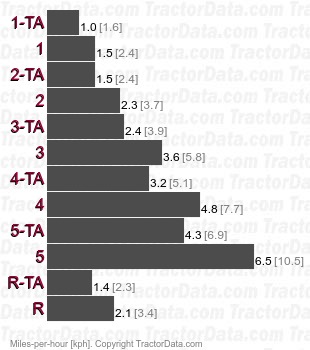

TD-5 Torque-Amplifier two-speed power shift speeds
Transmission
Gears5 forward and reverse
Oil capacity15.6 qts
14.8 L
 30.6 qts (with hydraulics)
29.0 L
