Tractors > International Harvester > TD-14

International Harvester TD-14 Tests



International Harvester TD-14 tractor photo
1939 - 1958
Agricultural Crawler tractor
Series map:
TD-14
71.1hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 343

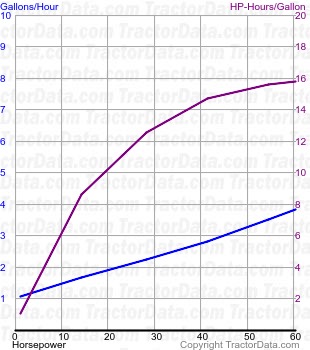

TD-14 fuel use from test 343
Nebraska Tractor Test 343
Diesel 6-speed crawler
May 6 - 31, 1940
Link: Nebraska Tractor Test 343 file
Belt power (max)61.56 hp
45.9 kW
Belt fuel use (max)3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power51.82 hp
38.6 kW
Gear 2 used for power test.
Max pull13,426 lbs
6090 kg
Gear 1 used for pull test.
