Tractors > International Harvester > T-5

International Harvester T-5 Tests



International Harvester T-5 tractor photo
1959 - 1964
Agricultural Crawler tractor
Series map:
T-4
T-5
36.2hp*
40.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 753

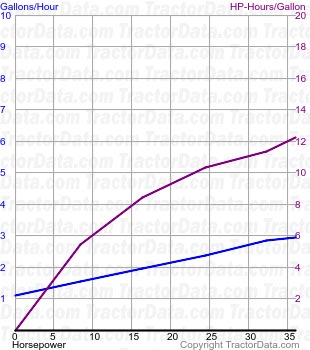

T-5 fuel use from test 753
Nebraska Tractor Test 753
Gasoline Torque Amplifier crawler
August 18 - September 3, 1960
Link: Nebraska Tractor Test 753 file
PTO performance
Power at rated engine speed36.01 hp
26.9 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power28.6 hp
21.3 kW
Fuel use2.9 gal/hour
11.0 l/hour
Gear 2 used for power test.
Max pull7430 lbs
3370 kg
Gear 1 used for pull test.
