Tractors > John Deere > 6405

John Deere 6405



John Deere 6405 tractor photo
1998 - 2002
Advantage Series
Utility tractor
Series map:
6405
6605
94.4hp*
105.6hp*
*Estimated engine power for comparison only.
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
Original price was $35,000 in 1999
The 6405 was one of the Advantage Series tractors designed to provide an economical alternative to the full-features on the TEN series tractors. Transmission options, hydraulics, and the cab were the major differences between the two models.
Variants
6410TEN series
6405Advantage series
John Deere 6405 Engine
John Deere 4.5L 4-cyl diesel
Fuel tank43.6 gal
165.0 L
 30.7 gal (High Clearance)
116.2 L
Engine details ...
John Deere 6405 Transmissions
12-speed fully synchronized
16-speed power shuttle
Transmission details ...
John Deere 6405 Power
PTO (claimed)85 hp
63.4 kW
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post foldable ROPS. Advantage Cab optional with air-conditioning.
Photos
John Deere 6405 with model 640 loader.
John Deere 6405 photos...
Hydraulics
TypeHydraVantage constant flow load sensing
Pressure2500 psi
172.4 bar
Valves2 to 4
Total flow17.5 gpm
66.2 lpm
Tractor hitch
Rear Type2
Controlposition control with optional draft control
Rear lift5,028 lbs
2280 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Engine RPM540@2143
 1000@2208
Dimensions & Tires
Wheelbase94.5 inches
240 cm
Weight7695 to 8987 pounds
Front tire10.00-16
Rear tire18.4-34 (2WD)
Full dimensions and tires ...
6405 Serial Numbers
Location:Serial number plate on the right side of the tractor frame, above the front axle.
1998206000
1999233700
2000260600
2001322099

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Battery CCA830
Battery volts12
References

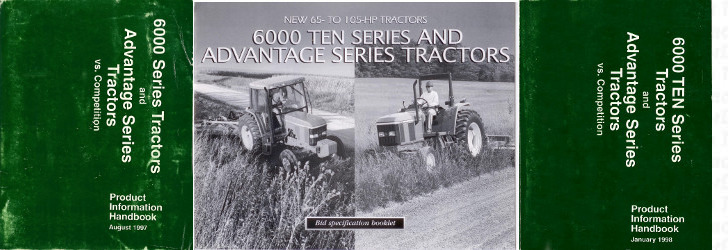

6405 references literature
6000 Series Tractors and Advantage Series Tractors Product Information Handbook published in 1997, by John Deere
6000 TEN Series and Advantage Series Tractors published in 1998, by John Deere
6000 TEN Series Tractors and Advantage Series Tractors Product Information Handbook published in 1998, by John Deere
