John Deere 6405 Transmission


John Deere 6405 tractor photo
1998 - 2002
Advantage Series
Utility tractor
Series map:
6405
6605
94.4hp*
105.6hp*
*Estimated engine power for comparison only.
Transmission options
12-speed fully synchronized
16-speed power shuttle
Transmission
TransmissionJohn Deere SyncroVantage
Typefully synchronized
Gears12 forward and 4 reverse
Oil capacity54.8 qts
51.9 L

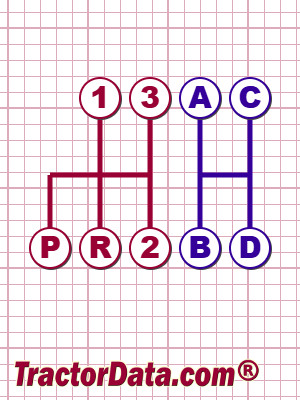

Three gears (1-3) plus reverse (R) with four ranges (A-D).
Speeds
With 18.4-34 rear tires.

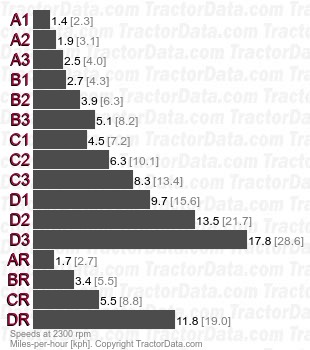

6405 SyncroVantage fully synchronized speeds
Transmission
TransmissionJohn Deere SyncroVantage Power Reverser
Typepower shuttle
Gears16 forward and reverse
Oil capacity54.8 qts
51.9 L

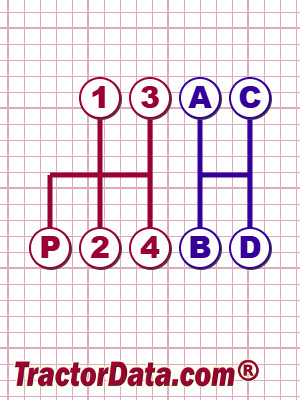

Four gears (1-4) in four ranges (A-D) with left-hand reverser lever. Power shuttle allows direction changes without using the clutch.
Speeds
With 18.4-34 rear tires.

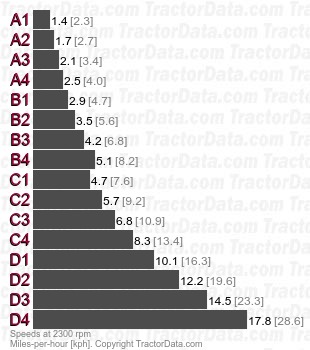

6405 SyncroVantage Power Reverser power shuttle speeds
