AGCO RT135 Tests


AGCO RT135 tractor photo
2004 - 2005
RT Series
Row-Crop tractor
Series map:
RT120
RT135
RT150
150.0hp
150.0hp*
166.7hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1842

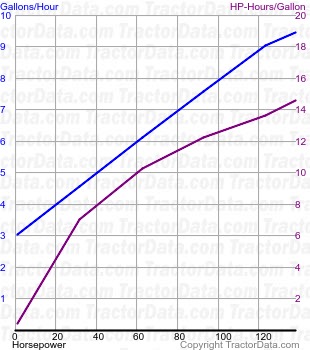

RT135 fuel use from test 446
OCED Tractor Test 1842
Diesel CVT 4WD
October 7 - 26, 2004
Link: OCED Tractor Test 1842 file
PTO performance
Max power143.94 hp
107.3 kW
Fuel use0.1 gal/hour
0.4 l/hour
Power at rated engine speed137.72 hp
102.7 kW
Fuel use9.4 gal/hour
35.6 l/hour
Power at rated PTO speed142.03 hp
105.9 kW
Fuel use9.2 gal/hour
34.8 l/hour
Drawbar performance
Max power108.36 hp
80.8 kW
Fuel use9.5 gal/hour
36.0 l/hour
Pull at 9 KPH
Max pull17,663 lbs
8011 kg
Pull at 4 KPH
