AGCO RT130

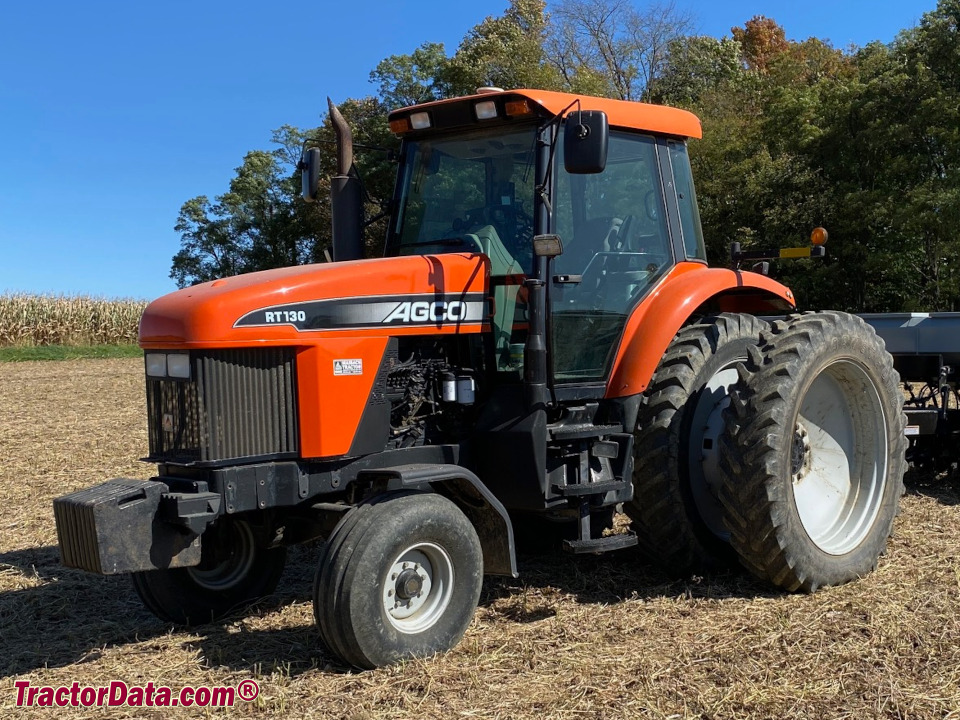

AGCO RT130 tractor photo
2002 - 2004
RT Series
Row-Crop tractor
Series map:
RT115
RT130
RT145
127.8hp*
144.4hp*
161.1hp*
*Estimated engine power for comparison only.
Production
ManufacturerAGCO
Row-Crop tractor
Built in Beauvais, France
AGCO RT130 Engine
Cummins 5.9L 6-cyl diesel
Fuel tank108 gal
408.8 L
Engine details ...
AGCO RT130 Transmissions
18-speed full power shift
32-speed partial power shift
Transmission details ...
AGCO RT130 Power
PTO (claimed)130 hp
96.9 kW
Drawbar (tested)109.0 hp
81.3 kW
PTO (tested)151.8 hp
113.2 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.
Photos
No photos of the AGCO RT130 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Pressure2900 psi
200.0 bar
Pump flow29 gpm
109.8 lpm
 39 gpmOptOptional
147.6 lpm
SCV flow27.7 gpm
104.8 lpm
Tractor hitch
Rear Type3/3N
Rear lift (at 24"/610mm)14,500 lbs
6577 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase111.2 inches
282 cm
Weight14880 to 16894 pounds
Full dimensions and tires ...
RT130 Serial Numbers
Location:Rear of tractor.
2002L001001
2003M001001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
RT130 references literature
RT/DT Series - Ready to Rumble published in 2001, by AGCO
