McCormick-Deering Super WD-6


McCormick-Deering Super WD-6 tractor photo
1952 - 1954
Series map:
Super WD-6
Super WD-9
45.6hp*
72.2hp*
*Estimated engine power for comparison only.
Production
ManufacturerMcCormick-Deering (a part of International Harvester)
Built in Rock Island, Illinois, USA
Variants
Super W-6gasoline engine
WD6-TATorque Amplifier transmission
McCormick-Deering Super WD-6 Engine
International Harvester 4.3L 4-cyl diesel
Fuel tank20.5 gal
77.6 L
Engine details ...
McCormick-Deering Super WD-6 Transmissions
5-speed gear
10-speed two-speed power shift
Transmission details ...
McCormick-Deering Super WD-6 Power
Drawbar (claimed)33 hp
24.6 kW
PTO (claimed)41 hp
30.6 kW
Drawbar (tested)38.15 hp
28.4 kW
Belt (tested)46.84 hp
34.9 kW
Performance test details ...
Mechanical
Two-wheel drive
Disc brakes
Open operator station.
Dimensions & Tires
Weight5,500 lbs
2494 kg
Front tire6.00x16
Rear tire15.00x30
Full dimensions and tires ...
Super WD-6 Serial Number Location

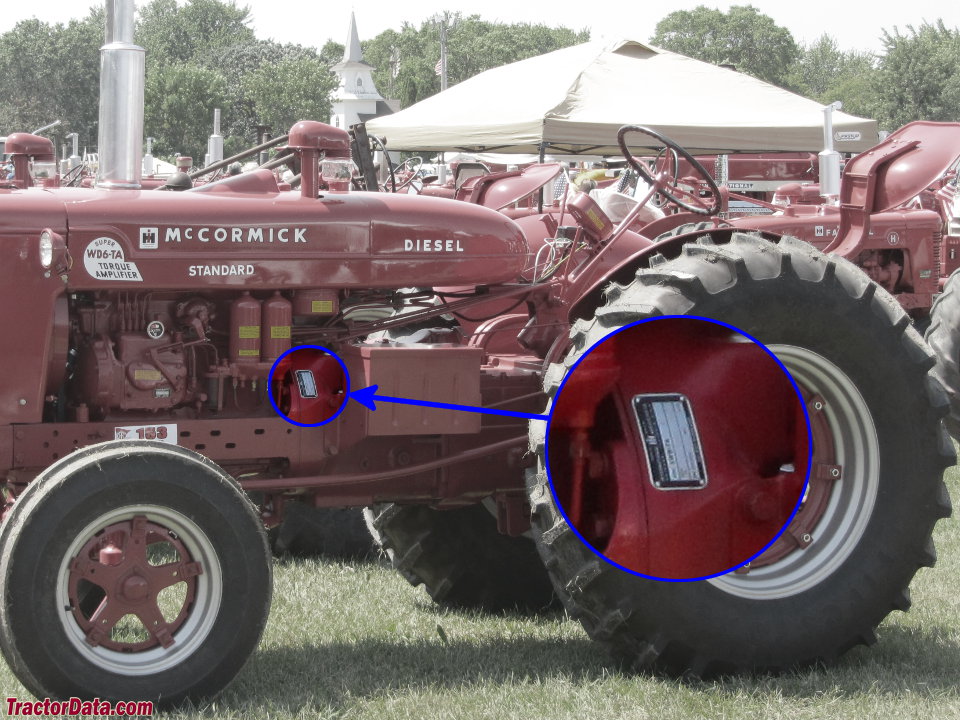

McCormick-Deering Super WD-6 serial number location
Serial number on the left side of the Super WD-6, on the clutch housing.
Super WD-6 Serial Numbers
1952501
19532277
19548997
Final9084

FAQ: How to read a serial number table.
