Series map:
Super WD-6
Super WD-9
45.6hp*
72.2hp*
*Estimated engine power for comparison only.
Transmission options |
5-speed gear |
10-speed two-speed power shift |
Transmission |
Type | gear
|
Gears | 5 forward and 1 reverse
|
Clutch | dry disc
|

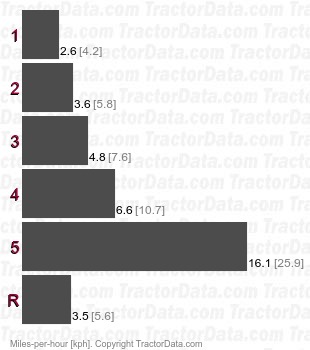

Speeds |
|
Transmission |
Transmission | International Harvester Torque Amplifier
|
Type | two-speed power shift
|
Gears | 10 forward and 2 reverse
|
The Torque Amplifier was available on the Super WD-6-TA in 1954 |
